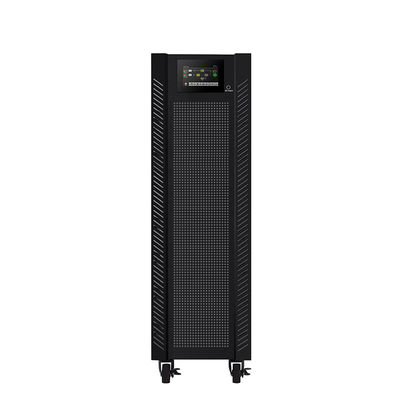

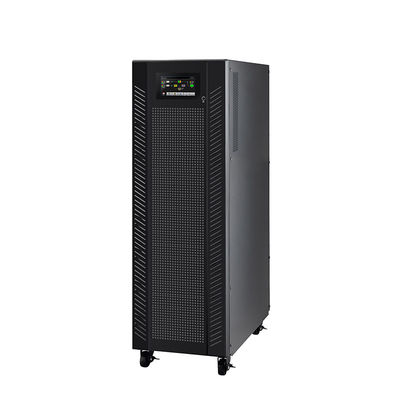

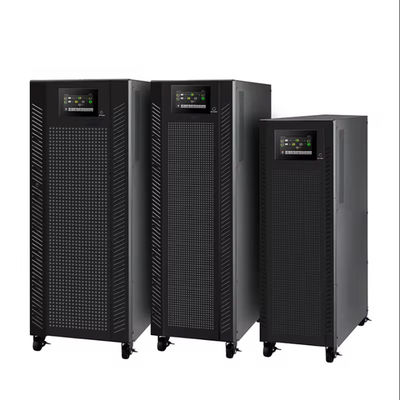

Visench Galleon II 10KVA 20KVA 30KVA 40KVA PF 0.99 Online Tower Pure Sine Wave UPS for Networking
Product nameGalleon ll 3-phase in/3-phase outRated Capacity10KVA-40KVAPower Factor0.99Input Voltage3 x 360/380/400/415 VACFrequency40~70 HZOutput Voltage3 x 360/380/400/415 VACWaveformPure Sine waveBattery Type12V/9AHPHASE3Ph in/ 3Ph out or 3Ph in 1Ph out or 1Ph in 1Ph outHarmonic Distortion≤2%THD ...
10KVA online tower UPS
,pure sine wave networking UPS
,PF 0.99 online UPS
Product name | Galleon ll 3-phase in/3-phase out |
Rated Capacity | 10KVA-40KVA |
Power Factor | 0.99 |
Input Voltage | 3 x 360/380/400/415 VAC |
Frequency | 40~70 HZ |
Output Voltage | 3 x 360/380/400/415 VAC |
Waveform | Pure Sine wave |
Battery Type | 12V/9AH |
PHASE | 3Ph in/ 3Ph out or 3Ph in 1Ph out or 1Ph in 1Ph out |
Harmonic Distortion | ≤2%THD (Linear Load) ;≤ 5 % THD (Non-inear Load) |
Current Crest Ratio | 3:1(max.) |
Battery Mode | 94.50% |
Frequency Range | 46~54 Hz or 56~64H2 |
Inverter to Bypass | Zero |
Typical Recharge Time | 9 hours recover to 90% capacity |
Size(mm) | 630 x 250 x 826 |
Weight(Kgs) | 127/139/207/233 |
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
-
