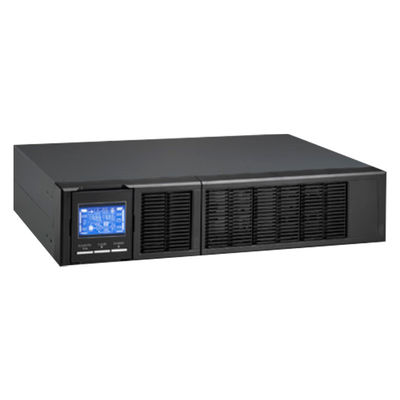

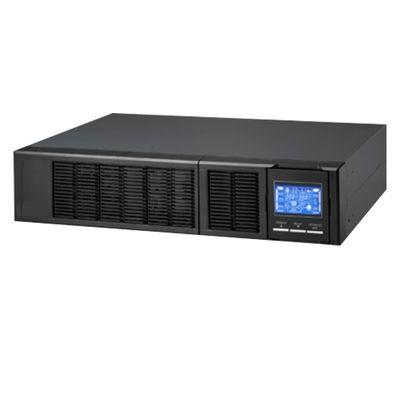

Pure Sine Wave Online UPS 1KVA 2KVA 3KVA 6KVA 10KVA for Security/Monitoring/Alarm
Product nameWinner Pro RackRated Capacity1KVA -10KVAPower Factor0.99Input Voltage208/220/230/240VACFrequency40Hz-70HzOutput Voltage208/220/230/240VACWaveformPure Sine waveBattery Type12V/9AHPHASESingle phase with grounHarmonic Distortion≤ 3 % THD (Linear Load),Harmonic DistortionCurrent Crest Ratio3...
Pure Sine Wave Online UPS
,Online UPS for Security Systems
,10KVA Online UPS with Warranty
Product name | Winner Pro Rack |
Rated Capacity | 1KVA -10KVA |
Power Factor | 0.99 |
Input Voltage | 208/220/230/240VAC |
Frequency | 40Hz-70Hz |
Output Voltage | 208/220/230/240VAC |
Waveform | Pure Sine wave |
Battery Type | 12V/9AH |
PHASE | Single phase with groun |
Harmonic Distortion | ≤ 3 % THD (Linear Load),Harmonic Distortion |
Current Crest Ratio | 3:01 |
Voltage Regulatior | 土1% |
Frequency Range | 47~ 53 Hz or 57~ 63 Hz |
Inverter to Bypass | 4 ms (Typical) |
Typical Recharge Time | 4 hours recover to 90% capacity |
Size(mm) | 310x438x88/410x438x88/630x438x88(mm) |
Weight(Kgs) | 12/19//14.2/15 |
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
-
20KVA-200KVA High Frequency UPS Double Conversion Visench 3C3 Series UPS
Visench 3C3 series UPS 20KVA-200KVA Functions & features: On-line UPS DSP system IGBT technology CPU control 20KHz SPWM modulation Larger LCD display Double conversion
-
30KVA-300KVA Visench PT Modular UPS Manufacturers High Power Density
30KVA-300KVA Visench PT Modular UPS Functions&features: three in and three out ups, The product adopts modular design N+X parallel redundancy technique, Product capacity covers various power segments between 20kVA and 300kVA, facilitating flexible configuration and gradual investment by users.This series of UPS can solve almost all the power supply problems, such as power failure, mains high voltage, mains low voltage, voltage instantaneous sag, damping shock, high voltage
