Overcurrent Protection Portable Solar 14400MAH 12V 15V 24V 100W Mini DC UPS Power Supply
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | OEM |
| Model Number | ECO PLUS 8100 |
| Price | $32.00/units 1-499 units |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 3months-1year | Phase | Single Phase |
|---|---|---|---|
| Protection | Overcurrent, Overcurrent & Overvoltage | Weight | 0.7 Kg |
| Type | DC UPS | Application | Networking, Modem, Routers Etc |
| Electric Energy | 0.2 Wh | Protection 1 | Under-voltage, Overvoltage, Overload |
| Protection 2 | Over-temperature And Short Circuit | Capacity | 144000 MAh |
| DC Output | 12V*5+9V/12/+POE(15V/24V)+5V+USB*2 Or 12V*5+9V/12/+19V+5V+USB*2 | Output Power | 100W |
| Charging Period | 3-4 Hours | Battery Type | LiFePO4 3.2V/1800mAH*8 (50WH) |
Product Description
Brand Name | Visench |
Model Number | ECO Plus 8100 |
Product tpye | Mini DC UPS |
Rated power | 100W |
Input voltage | 100~240Vac/ 50Hz~60Hz |
Output voltage | 15V/24V/5V+2*USB |
Battery type | LiFePO4 battery |
Battery capacity | 3.2V/1800mAH*8 (144000 mAh) |
Size (mm) | 263*156*40mm |
Weight (kg) | 0.7 kg |
Certificates | CE |
MODEL | ECO Plus 860 | ECO Plus 1660 | ECO Plus 8100 | ECO Plus 8100P | |||
INPUT | |||||||
Input voltage | 100~240Vac | ||||||
OUTPUT | |||||||

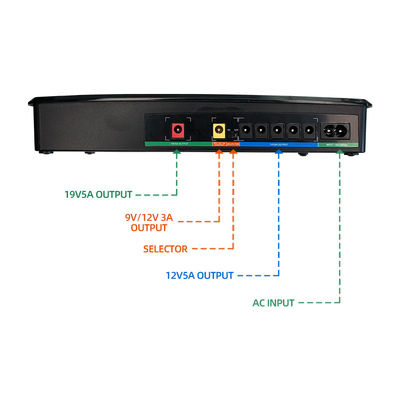

DC output voltage | 5V+USB*2 2A | 5V+USB*2 2A | 5V+USB*2 2A | 5V+USB*2 2A | |||
9V/12V 2A | 9V/12V 2A | 9V/12V 3A | 9V/12V 3A | ||||
12V*4 5A | 12V*4 5A | 12V*5 5A | 12V*5 5A | ||||
15V/24V 1A | 15V/24V 1A | 19V 5A | 15V/24V 1A | ||||
Solar Input 2A | Solar Input 2A | ||||||
Max power | 60W | 60W | 100W | 100W | |||
BATTERY | |||||||
Battery type | Lithium | LiFePO4 | |||||
Capacity of battery | 2200mAh*8 | 2200mAh*16 | 3.2V/1800mAhx8 (50Wh) | 3.2V/1800mAhx8 (50Wh) | |||
CHARGE | |||||||
Charging period | Typical: 4~5 Hours | Typical: 3~4 Hours | |||||
PHYSICAL | |||||||
Dimension(mm) | 258*152*46(mm) | 263*156*40(mm) | |||||
Net weight(Kg) | 0.94kg | 1.28 | 0.7 kg | ||||
