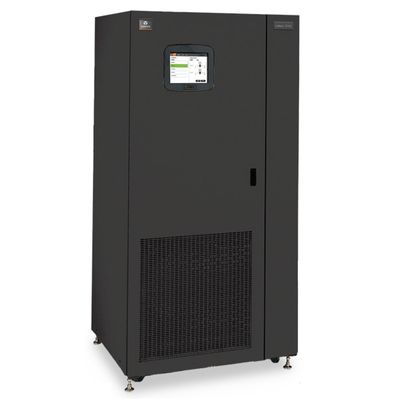

3 Pole VERTIV Liebert STS CE Certificate 3 Phase Static Transfer Switch for White Color
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Vertiv |
| Model Number | STS 630A, STS 630A |
| Minimum Order Quantity | 5 pieces |
| Price | $25,098.00/pieces >=5 pieces |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Pole | 3 | Rated Current | 16A |
|---|---|---|---|
| Frame Current | 1 | Max. Current | STS 630A |
| IP Level | IP11 | Color | White |
| Product Name | STS AC380V Sts Single-phase STS Static Transfer Switch | Type | High Voltage |
| Material | Copper | Rated Current | STS 63A-1000A |
| Rated Voltage | AC 220V | Application | Industrial |
| Highlight | White Color Static Transfer Switch,3 Phase Static Transfer Switch,3 Pole VERTIV Liebert STS |
||
Product Description
Technical specifications | ||||||||||||
Rated current | STS 63A/3P | STS 100A/3P | STS 250A/3P | STS 400A/3P | STS 630A/3P | 1000A/3P | ||||||
Input metrics | ||||||||||||
Source | Two input sources | |||||||||||
Input method | 3φ+N+PE | |||||||||||
Rated frequency | 50Hz/60Hz | |||||||||||
Output indicators | ||||||||||||
Power factor | 0.75～1.0 leading or lagging | |||||||||||
Overload capacity | 125% 30Min，150%2Min | |||||||||||
Switching method | Break-Before-Make | |||||||||||
Intermittent time | <5ms，Typical value:3ms | |||||||||||
Structural specifications | ||||||||||||
Width(mm) | 600 | 600 | 800 | 800 | 800 | 2117 | ||||||
Depth(mm) | 800 | 800 | 800 | 800 | 800 | 800 | ||||||
Height(mm) | 1900 | 1900 | 1900 | 1900 | 1900 | 2000 | ||||||
Weight(Kg) | 205 | 205 | 300 | 300 | 470 | 1100 | ||||||
