Static Transfer Switch STS

>

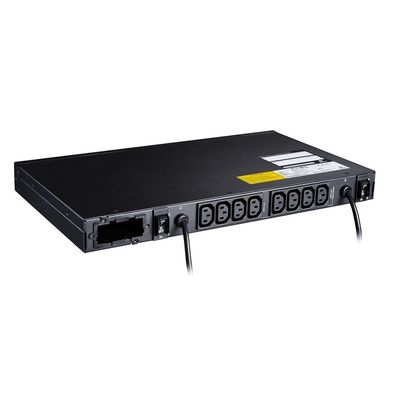

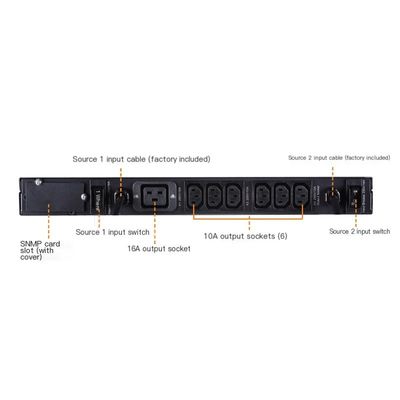

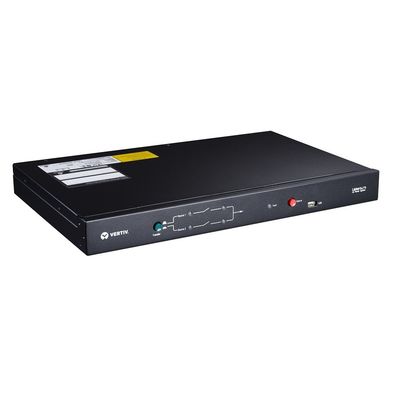

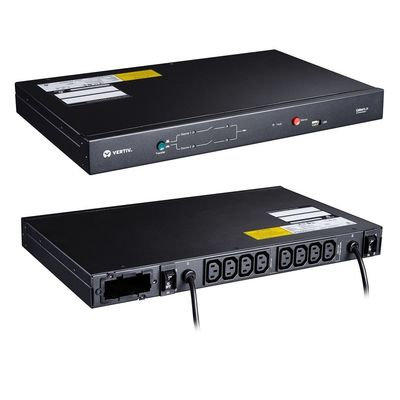

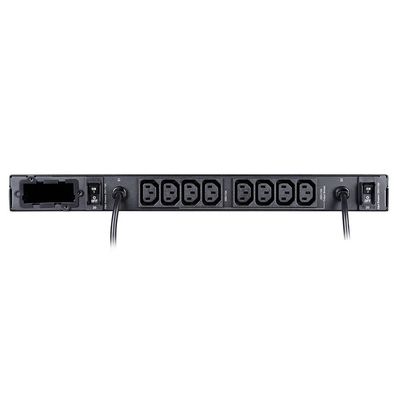

10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch

Quality 10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch factory
Quality 10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch factory
Quality 10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch factory
Quality 10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch factory
Quality 10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch factory
Quality 10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch factory
Quality 10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch factory

10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch

Product Summary

Items(10A, 16A) Specifications (32A) SpecificationsInputInput sourceTwo AC inputsInput mode1Ф+N+PERated voltage220/230VacRated frequency50/60HzVoltage range150~300VacFrequency rangeRated frequency±5HzVoltage distortion

Key Attributes
Brand Name: Vertiv
Model Number: UF-LTS16-1P, STS-10/32A
Place of Origin: Guangdong, China
MOQ: 5 units
Price: $220.00/units >=5 units
Product Custom Attributes
Highlight

Standard Network Card STS

,

Dual Power Input Static Switching Switch

,

10A IEC Socket STS

Number Of Pole:
3
Rated Current:
16A
Frame Current:
1
Max. Current:
32A
IP Level:
IP11
Color:
White
Product Name:
STS AC220V Sts Single-phase STS Static Transfer Switch
Type:
High Voltage
Material:
Copper
Rated Current:
10A 16A 32A
Rated Voltage:
AC 220V
Application:
Industrial
Product Description
10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch 0
10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch 1
Items
(10A, 16A) Specifications
(32A) Specifications





Input
Input source
Two AC inputs
Input mode
1Ф+N+PE
Rated voltage
220/230Vac
Rated frequency
50/60Hz
Voltage range
150~300Vac
Frequency range
Rated frequency±5Hz
Voltage distortion
<10%


Output
Power factor
0.75~1.0 leading or lagging
0.8~1.0 leading or lagging
Overload capability
125%, 30min
Efficiency (100% linear load)
0.99
0.98

Transfer
Number of poles
2 poles
Interrupt time for automatic transfer
<6ms(typical value), <11ms(Max value)
Environmental parameters
Items
Normal range
Operating temperature
0~40°C
Storage temperature
-40~70°C
Relative humidity
5~95%, no condensation
Elevation
3000m
Mechanical parameters

Dimensions (H X W X D)
Weight
Pure weight of standard unit
Including the weight of parts
44mm×430mm×250mm (10A, 16A)
4.5kg
5kg
84mm×430mm×340mm (32A)
5kg
6kg
10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch 2
10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch 3
10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch 4
10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch 5
10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch 6
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.

10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch 7
10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch 8
10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch 9
10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch 10
10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch 11
10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch 12
10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch 13
10A IEC Socket Standard Network Card VERTIV Dual Power Input Static Switching Switch 14
1. May I take some samples to test before I placing the order?
Yes, we can offer sample testing for you to verify product quality and performance.

2. What is the warranty?
We support 1 years warranty.

3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.

4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.

5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
