Home > Products >

Static Transfer Switch STS

>

AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU

Quality AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU factory
Quality AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU factory
Quality AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU factory
Quality AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU factory
Quality AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU factory
Quality AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU factory
Quality AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU factory

AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU

Product Summary

TECHNICAL SPECIFICATIONSATS 16ATS 16 NetpackATS 30Nominal current16A16A30A*Input/outputNominal voltage/input frequency208/220/230/240 V ; 50/60HzPerformanceTypical transfer time8 msSafetyIEC/EN 62310-1,IEC/EN 60950-1IEC/EN 62310-1,IEC/EN 60950-1IEC/EN 60950-1EMCIEC/EN 62310-2MarkingCEConnectionInput...

Key Attributes
Brand Name: EATON
Model Number: EATS16N, STS-10/32A
Place of Origin: Guangdong, China
MOQ: 5 pieces
Price: $400.00/pieces >=5 pieces
Product Custom Attributes
Highlight

C19 Automatic Transfer Switch

,

3 Pole Automatic Transfer Switch

,

Eaton ATS Automatic Transfer Switch

Number Of Pole:
3
Rated Current:
16A
Frame Current:
1
Max. Current:
32A
IP Level:
IP11
Color:
White
Product Name:
STS AC220V Sts Single-phase STS Static Transfer Switch
Type:
High Voltage
Material:
Copper
Rated Current:
10A 16A 32A
Rated Voltage:
AC 220V
Application:
Industrial
Product Description
AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU 0
AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU 1
TECHNICAL SPECIFICATIONS
ATS 16
ATS 16 Netpack
ATS 30
Nominal current
16A
16A
30A*
Input/output
Nominal voltage/input frequency
208/220/230/240 V ; 50/60Hz
Performance
Typical transfer time
8 ms
Safety
IEC/EN 62310-1,IEC/EN 60950-1
IEC/EN 62310-1,IEC/EN 60950-1
IEC/EN 60950-1
EMC
IEC/EN 62310-2
Marking
CE
Connection
Inputs
2IEC C20 + 2 input cables
Hardwired
Outputs
8 IEC C13 + 1 IEC C19
Hardwired
Communication and user interface
User interface

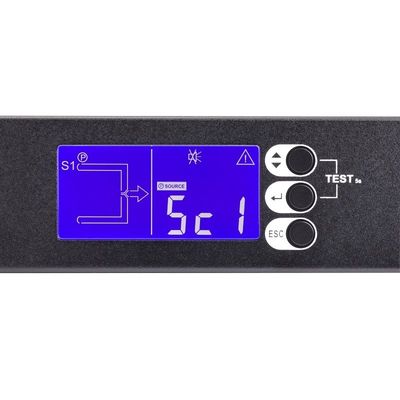

LCD
LED
Network communication
No
Yes
Dimensions and weight
Dimensions H x W x D
43 x 430 x 250mm
43 x 430 x 250mm
43 x 440 x 390mm
Weight
3,3 kg
3,5 kg
5 kg
Customer Service & Support
1 years guarantee
Standard exchange of the product
* 30A up to 35°C, 25.6A up to 40°C.
Part Numbers
ATS 16
ATS 16 Netpack
ATS 30
ATS
EATS16
EATS16N
EATS30N
Set of two 16 A connecting cables IEC

66 397
female connector / USE-DIN male connector
length 1.5 m
1 cable / IEC 10 A male to IEC 16 A female
66 029
AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU 2
AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU 3
AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU 4
AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU 5
AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU 6
AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU 7
AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU 8
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.

AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU 9
AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU 10
AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU 11
AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU 12
AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU 13
AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU 14
AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU 15
AC 220V 3 Pole Eaton ATS EATS30N Automatic Transfer Switch for C19 Redundant Power PDU 16
1. May I take some samples to test before I placing the order?
Yes, we can offer sample testing for you to verify product quality and performance.

2. What is the warranty?
We support 1 years warranty.

3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.

4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.

5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
