Eaton ATS 30A Dual Power Static Switching Switch Automatic Transfer 3 Pole IEC C13
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | EATON |
| Model Number | EATS16N, STS-10/32A |
| Minimum Order Quantity | 5 pieces |
| Price | $580.00/pieces >=5 pieces |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Pole | 3 | Rated Current | 16A |
|---|---|---|---|
| Frame Current | 1 | Max. Current | 32A |
| IP Level | IP11 | Color | White |
| Product Name | STS AC220V Sts Single-phase STS Static Transfer Switch | Type | High Voltage |
| Material | Copper | Rated Current | 10A 16A 32A |
| Rated Voltage | AC 220V | Application | Industrial |
| Highlight | 3 Pole Static Switching Switch,30A Static Switching Switch,IEC C13 Static Switching Switch |
||
Product Description
TECHNICAL SPECIFICATIONS | ATS 16 | ATS 16 Netpack | ATS 30 | |||
Nominal current | 16A | 16A | 30A* | |||
Input/output | ||||||
Nominal voltage/input frequency | 208/220/230/240 V ; 50/60Hz | |||||
Performance | ||||||
Typical transfer time | 8 ms | |||||
Safety | IEC/EN 62310-1,IEC/EN 60950-1 | IEC/EN 62310-1,IEC/EN 60950-1 | IEC/EN 60950-1 | |||
EMC | IEC/EN 62310-2 | |||||
Marking | CE | |||||
Connection | ||||||
Inputs | 2IEC C20 + 2 input cables | Hardwired | ||||
Outputs | 8 IEC C13 + 1 IEC C19 | Hardwired | ||||
Communication and user interface | ||||||

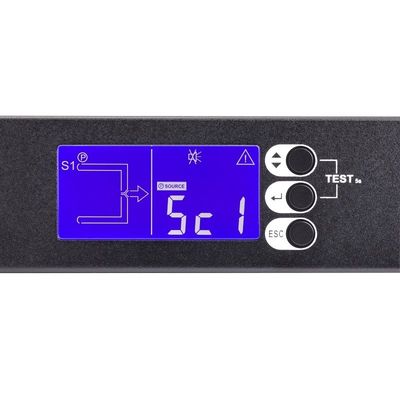

User interface | LCD | LED | ||||
Network communication | No | Yes | ||||
Dimensions and weight | ||||||
Dimensions H x W x D | 43 x 430 x 250mm | 43 x 430 x 250mm | 43 x 440 x 390mm | |||
Weight | 3,3 kg | 3,5 kg | 5 kg | |||
Customer Service & Support | ||||||
1 years guarantee | Standard exchange of the product | |||||
* 30A up to 35°C, 25.6A up to 40°C. | ||||||
Part Numbers | ATS 16 | ATS 16 Netpack | ATS 30 | |||
ATS | EATS16 | EATS16N | EATS30N | |||
Set of two 16 A connecting cables IEC | 66 397 | |||||
female connector / USE-DIN male connector | ||||||
length 1.5 m | ||||||
1 cable / IEC 10 A male to IEC 16 A female | 66 029 | |||||
COMPANY PROFILE:
Vesion Tech Co., Ltd. is located in Futong Haizhi Technology Park, Shenzhen, with a 1,500 m² R&D center and sales center base. Also，our business partner have an automated production plant of 10,000 m² in Foshan, Guangdong.
We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.
As a technical facilities provider, Vesion also cooperates with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.
Vesion follows the national carbon neutrality strategy and based on the development concept of independent innovation, constantly pursues leadership in energy-saving technology and innovation in production processes, and has established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.
1. May I take some samples to test before I placing the order?
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
Yes, we can offer sample testing for you to verify product quality and performance.
2. What is the warranty?
We support 1 years warranty.
3.What can you buy from us?
Eaton, Vertiv, APC, Santak, Vesion & OEM/ODM UPS; Cooling, MDC, PDU and so on.
4. What payment methods does your conmpany support?
We could accept T/T, credit card, Alipay or L/C at sight.
5. What are the terms can you offer for us?
We could offer EXW, FOB, CIF, DDP and so on.
