Static Transfer Switch STS

>

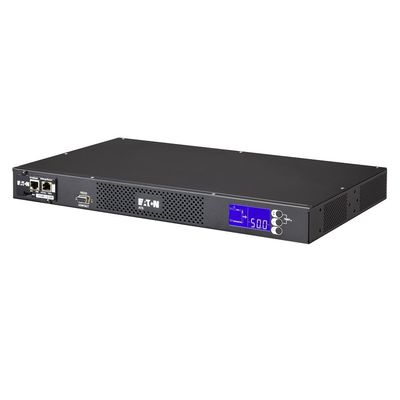

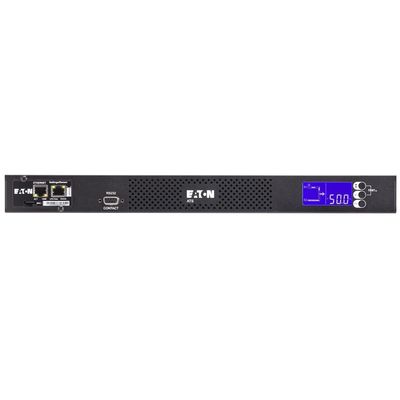

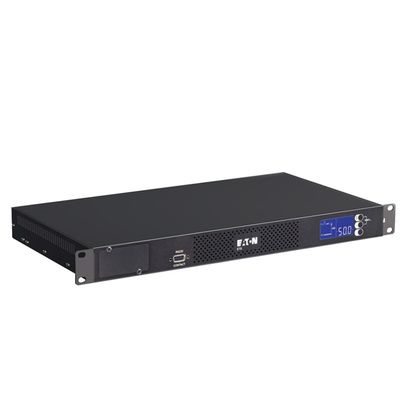

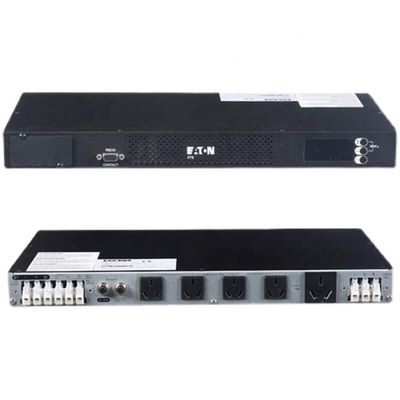

Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card

Quality Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card factory
Quality Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card factory
Quality Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card factory
Quality Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card factory
Quality Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card factory
Quality Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card factory
Quality Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card factory

Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card

Product Summary

TECHNICAL SPECIFICATIONSATS 16ATS 16 NetpackATS 30Nominal current16A16A30A*Input/outputNominal voltage/input frequency208/220/230/240 V ; 50/60HzPerformanceTypical transfer time8 msSafetyIEC/EN 62310-1,IEC/EN 60950-1IEC/EN 62310-1,IEC/EN 60950-1IEC/EN 60950-1EMCIEC/EN 62310-2MarkingCEConnectionInput...

Key Attributes
Brand Name: EATON
Model Number: EATS16N, STS-10/32A
Place of Origin: Guangdong, China
MOQ: 5 pieces
Price: $400.00/pieces >=5 pieces
Product Custom Attributes
Highlight

3 Pole Automatic Transfer Switch

,

EATS16 Automatic Transfer Switch

,

IP11 Automatic Transfer Switch

Number Of Pole:
3
Rated Current:
16A
Frame Current:
1
Max. Current:
32A
IP Level:
IP11
Color:
White
Product Name:
STS AC220V Sts Single-phase STS Static Transfer Switch
Type:
High Voltage
Material:
Copper
Rated Current:
10A 16A 32A
Rated Voltage:
AC 220V
Application:
Industrial
Product Description
Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card 0
Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card 1
TECHNICAL SPECIFICATIONS
ATS 16
ATS 16 Netpack
ATS 30
Nominal current
16A
16A
30A*
Input/output
Nominal voltage/input frequency
208/220/230/240 V ; 50/60Hz
Performance
Typical transfer time
8 ms
Safety
IEC/EN 62310-1,IEC/EN 60950-1
IEC/EN 62310-1,IEC/EN 60950-1
IEC/EN 60950-1
EMC
IEC/EN 62310-2
Marking
CE
Connection

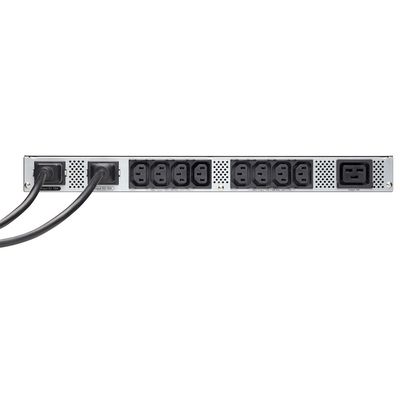

Inputs
2IEC C20 + 2 input cables
Hardwired
Outputs
8 IEC C13 + 1 IEC C19
Hardwired
Communication and user interface

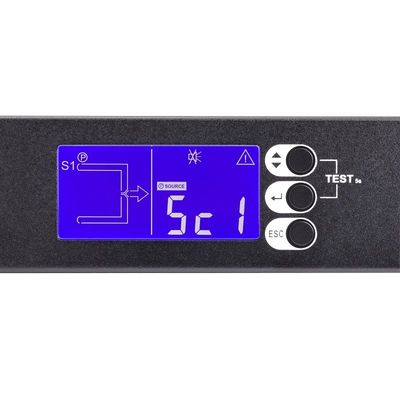

User interface
LCD
LED
Network communication
No
Yes
Dimensions and weight
Dimensions H x W x D
43 x 430 x 250mm
43 x 430 x 250mm
43 x 440 x 390mm
Weight
3,3 kg
3,5 kg
5 kg
Customer Service & Support
1 years guarantee
Standard exchange of the product
* 30A up to 35°C, 25.6A up to 40°C.
Part Numbers
ATS 16
ATS 16 Netpack
ATS 30
ATS
EATS16
EATS16N
EATS30N
Set of two 16 A connecting cables IEC

66 397
female connector / USE-DIN male connector
length 1.5 m
1 cable / IEC 10 A male to IEC 16 A female
66 029
Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card 2
Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card 3
Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card 4
Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card 5
Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card 6
Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card 7
Eaton ATS EATS16 16A IEC Socket STS Automatic Transfer Switch IP11 3 Pole Network Card 8
