Static Transfer Switch STS

>

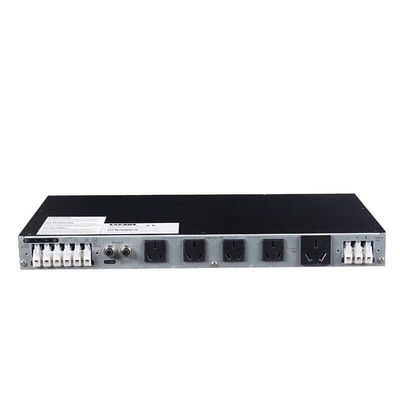

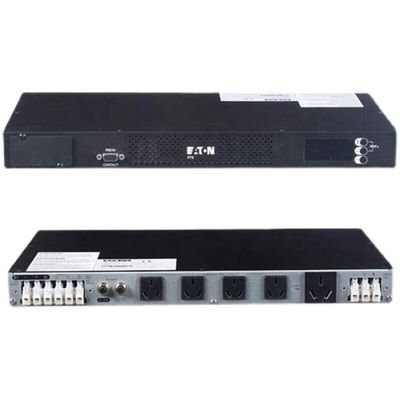

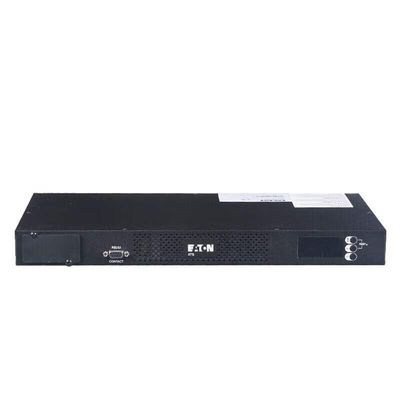

16A White Eaton ATS EATS16N Dual Power Input Static Switching Switch IEC Socket Standard Network Card

Quality 16A White Eaton ATS EATS16N Dual Power Input Static Switching Switch IEC Socket Standard Network Card factory
Quality 16A White Eaton ATS EATS16N Dual Power Input Static Switching Switch IEC Socket Standard Network Card factory
Quality 16A White Eaton ATS EATS16N Dual Power Input Static Switching Switch IEC Socket Standard Network Card factory
Quality 16A White Eaton ATS EATS16N Dual Power Input Static Switching Switch IEC Socket Standard Network Card factory
Quality 16A White Eaton ATS EATS16N Dual Power Input Static Switching Switch IEC Socket Standard Network Card factory
Quality 16A White Eaton ATS EATS16N Dual Power Input Static Switching Switch IEC Socket Standard Network Card factory
Quality 16A White Eaton ATS EATS16N Dual Power Input Static Switching Switch IEC Socket Standard Network Card factory

16A White Eaton ATS EATS16N Dual Power Input Static Switching Switch IEC Socket Standard Network Card

Product Summary

TECHNICAL SPECIFICATIONSATS 16ATS 16 NetpackATS 30Nominal current16A16A30A*Input/outputNominal voltage/input frequency208/220/230/240 V ; 50/60HzPerformanceTypical transfer time8 msSafetyIEC/EN 62310-1,IEC/EN 60950-1IEC/EN 62310-1,IEC/EN 60950-1IEC/EN 60950-1EMCIEC/EN 62310-2MarkingCEConnectionInput...

Key Attributes
Brand Name: EATON
Model Number: EATS16N, STS-10/32A
Place of Origin: Guangdong, China
MOQ: 5 pieces
Price: $400.00/pieces >=5 pieces
Product Custom Attributes
Highlight

Dual Power Input Static Switching Switch

,

16A Static Switching Switch

,

IEC Socket Static Switching Switch

Number Of Pole:
3
Rated Current:
16A
Frame Current:
1
Max. Current:
32A
IP Level:
IP11
Color:
White
Product Name:
STS AC220V Sts Single-phase STS Static Transfer Switch
Type:
High Voltage
Material:
Copper
Rated Current:
10A 16A 32A
Rated Voltage:
AC 220V
Application:
Industrial
Product Description
16A White Eaton ATS EATS16N Dual Power Input Static Switching Switch IEC Socket Standard Network Card 0
16A White Eaton ATS EATS16N Dual Power Input Static Switching Switch IEC Socket Standard Network Card 1
TECHNICAL SPECIFICATIONS
ATS 16
ATS 16 Netpack
ATS 30
Nominal current
16A
16A
30A*
Input/output
Nominal voltage/input frequency
208/220/230/240 V ; 50/60Hz
Performance
Typical transfer time
8 ms
Safety
IEC/EN 62310-1,IEC/EN 60950-1
IEC/EN 62310-1,IEC/EN 60950-1
IEC/EN 60950-1
EMC
IEC/EN 62310-2
Marking
CE
Connection

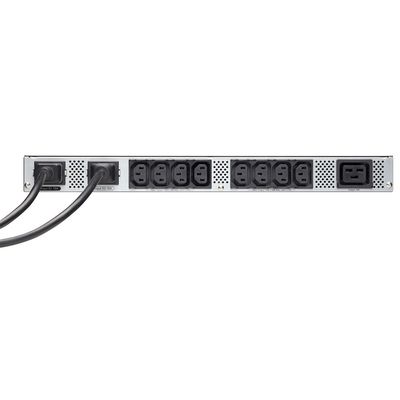

Inputs
2IEC C20 + 2 input cables
Hardwired
Outputs
8 IEC C13 + 1 IEC C19
Hardwired
Communication and user interface

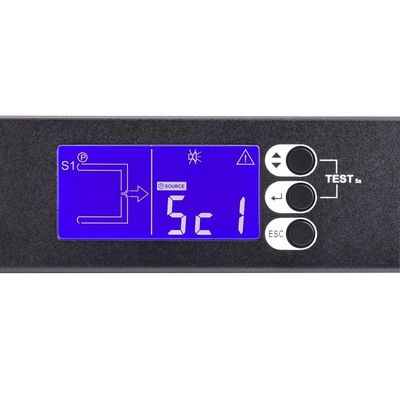

User interface
LCD
LED
Network communication
No
Yes
Dimensions and weight
Dimensions H x W x D
43 x 430 x 250mm
43 x 430 x 250mm
43 x 440 x 390mm
Weight
3,3 kg
3,5 kg
5 kg
Customer Service & Support
1 years guarantee
Standard exchange of the product
* 30A up to 35°C, 25.6A up to 40°C.
Part Numbers
ATS 16
ATS 16 Netpack
ATS 30
ATS
EATS16
EATS16N
EATS30N
Set of two 16 A connecting cables IEC

66 397
female connector / USE-DIN male connector
length 1.5 m
1 cable / IEC 10 A male to IEC 16 A female
66 029
