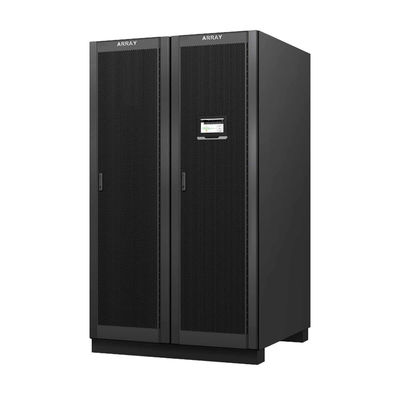

Santak Module UPS 60KW 300KVA Santak ARRAY 3A3 PT Series Modular UPS Manufacturers
| Place of Origin | China |
|---|---|
| Brand Name | Santak |
| Certification | CE |
| Model Number | Santak ARRAY 3A3 PT UPS |
| Packaging Details | cartons |
| Delivery Time | 30days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/months |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | ARRAY 3A3 PT Series（25kVA～200kVA) | Power Module | 25kW |
|---|---|---|---|
| Power Factor | 0.99 | Input Voltage | 380Vac/220Vac |
| Input Frequency | 50/60Hz | Output Voltage | 380Vac/220Vac |
| Output Frequency | 50/60Hz | Overload Capacity | 125%:10min 150%:1min |
| Inverter/Rectifier Topology | Three Level, High-frequency PWM IGBT Modulation Technology | Battery Type | Lead-acid Battery, Lithium Battery |
| Battery Voltage | 432~504Vdc | Communication Interface | RS - 232，Mini-Slot，Modbus/Ethernet，AS/400 |
| Environment Humidity | 5 - 95%, No Condensation | Storage Environment | –15 ~ +55℃ |
| Operating Temperature | 0～40℃ | Altitude | ≤ 1000m |
| Size | 2020*1100*600mm/2050*1013*603mm | Weight | 262kg/318.5kg/368kg (UPM 27.5kg) |
| Safety Standard | IEC61000-4 EN5550022/EN55024 ISO 90001:2000 |
You can tick the products you need and communicate with us in the message board.
| Model | Power | |
|---|---|---|
| 100KVA | 100KVA | |
| 120KVA | 120KVA | |
| 160KVA | 160KVA | |
| 200KVA | 200KVA |
Product Description
Santak ARRAY 3A3 PT UPS 25KVA-200KVA
Santak power protection solutions
ARRAY® 3A3TM Pro Power system solutions 15-150kVA
ARRAY® 3A3TM Pro Power system solutions
Product Description
ARRAY 3A3 Pro is Santak's new generation modular UPS, which provides safe, reliable, stable, and environmentally friendly uninterruptible power supply for data center computer rooms. It is combined with Santak's PPM precision power distribution cabinets and ARRAY series server cabinets to provide customers with integrated, One-stop basic power supply solution.
Single module capacity: 15kVA/13.5kW
Single cabinet system capacity: 60~150 kVA
Input voltage range: 214~520VAC
Input frequency range: 40~70Hz
Output voltage: 380VAC
Topology: Double conversion online
Design Concept
ARRAY 3A3 Pro is Santak's new three-input and three-output modular UPS. It adopts fully digital control technology and integrates technological achievements in the fields of power electronics and automatic control. It is a benchmark product in the UPS industry. The birth of ARRAY 3A3 Pro has brought new concepts to the power supply scheme of electrical equipment, further improving the availability of electrical equipment.ARRAY 3A3 Pro adopts a drawer-type, highly intelligent modular design with easy-to-plug function. It can meet power needs and reliability requirements by adding or removing modules in the cabinet. When there is module redundancy, online maintenance is allowed to achieve zero-stop maintenance.
The research and development of ARRAY 3A3 Pro is based on the REACH (Reliable, Environment, Advantage, Convenient and Human) design concept, which can meet the power guarantee of application places such as data centers, financial centers, enterprise computer rooms, industrial automation, education systems, medical systems or large offices. .
• Adopting wireless parallel technology to reduce the probability of single point failure and reliable design.
• System-level parallel redundancy, modules are mutual backups and can be hot-swapped online to improve system availability.
• Adopts modular design, easy to upgrade, expand and maintain, reduces MTTR maintenance time, achieves zero downtime and maintenance time, and improves system availability.
• Online double conversion technology adapts to harsh grid environments and provides pure power to loads.
• Adapt to the grid environment, input mains power range 214 -520V, reduce battery charging and discharging times, extend service life.
• ARRAY 3A3 Pro has excellent electrical performance, can provide safe and effective power protection for various loads, is green and environmentally friendly, and its components comply with EU Rosh.
• Intelligent battery management technology improves the service life of the battery. The number of battery cells is adjustable, improving battery utilization, reducing battery waste, and reducing environmental lead pollution.
• ARRAY 3A3 Pro adopts a large color touch screen, graphical display, intuitive and easy to operate, and supports Chinese and English interfaces.
• Easy to install, with options for upper and lower cable entry and exit systems, as well as other options such as distribution panels and lightning protection modules.
• Santak's rich communication interfaces and software monitoring solutions provide users with real-time localized or remote status indications and alarm prompts, forming a power protection solution integrating hardware and software.
High Availability
Reliable N+X wireless parallel redundancy structure
The system-level N+X parallel redundancy of ARRAY 3A3 Pro can greatly improve the reliability of the entire UPS power supply system. Moreover, due to the adoption of wireless parallel control technology in the industry today, it reduces single points of failure (steady-state operation) compared to wired parallel. It can still work normally even if the parallel communication line fails), raising reliability to a new level.
Reliable N+X wireless parallel redundancy structure
The system-level N+X parallel redundancy of ARRAY 3A3 Pro can greatly improve the reliability of the entire UPS power supply system. Moreover, due to the adoption of wireless parallel control technology in the industry today, it reduces single points of failure (steady-state operation) compared to wired parallel. It can still work normally even if the parallel communication line fails), raising reliability to a new level.
Higher system availability level
ARRAY 3A3 Pro adopts N+X wireless parallel redundancy control technology, and each module is a fully functional UPS. There is no additional control module to control the parallel connection and load current sharing of the parallel system. All parallel functions are provided by The UPS module itself is completed and has extremely high reliability. According to strict calculations, if the UPS has more than two redundant modules, the availability of the UPS can reach more than 99.999%. Even for load devices with more stringent power requirements, ARRAY 3A3 Pro can handle them with ease.
ARRAY 3A3 Pro adopts N+X wireless parallel redundancy control technology, and each module is a fully functional UPS. There is no additional control module to control the parallel connection and load current sharing of the parallel system. All parallel functions are provided by The UPS module itself is completed and has extremely high reliability. According to strict calculations, if the UPS has more than two redundant modules, the availability of the UPS can reach more than 99.999%. Even for load devices with more stringent power requirements, ARRAY 3A3 Pro can handle them with ease.
Downtime for maintenance
As long as there is redundancy in the parallel system (N+X, The number of UPS modules is greater than the number of redundant UPS modules. Since UPS modules are replaced for maintenance, the downtime for maintenance will not exceed 5 minutes.
As long as there is redundancy in the parallel system (N+X, The number of UPS modules is greater than the number of redundant UPS modules. Since UPS modules are replaced for maintenance, the downtime for maintenance will not exceed 5 minutes.
ARRAY 3A3 Pro Series UPS uses double conversion technology to cope with nine types of power problems: namely power failure, voltage sag, surge, undervoltage, line noise, overvoltage, frequency offset, switching transients and harmonic distortion. The protection provided by the ARRAY 3A3 Pro Series UPS reduces the chance of component stress, circuit board burnout, data corruption and program failure. At the same time, it provides a high level of power protection, so it is a good choice for mission-critical applications such as data centers, public security systems, power dispatch centers, and financial data centers
Optimized power supply system topology
ARRAY 3A3 Pro combines the advantages of centralized and distributed power supply topologies, and introduces the concept of regional power supply in its design. If several areas are divided into a large data equipment room, each area is equipped with one or two sets (redundant backup) ARRAY 3A3 Pro power supply system, placed directly next to the load in the area, and powered through the power distribution panel on the cabinet. In this way, each area has centralized power supply and centralized management, while areas have independent decentralized power supply and independent wiring. This power supply method of ARRAY 3A3 Pro has the advantages of decentralized "flexible configuration, allowing gradual investment, and is not prone to large-scale paralysis", and also has the advantages of centralized "easy to manage".
ARRAY 3A3 Pro combines the advantages of centralized and distributed power supply topologies, and introduces the concept of regional power supply in its design. If several areas are divided into a large data equipment room, each area is equipped with one or two sets (redundant backup) ARRAY 3A3 Pro power supply system, placed directly next to the load in the area, and powered through the power distribution panel on the cabinet. In this way, each area has centralized power supply and centralized management, while areas have independent decentralized power supply and independent wiring. This power supply method of ARRAY 3A3 Pro has the advantages of decentralized "flexible configuration, allowing gradual investment, and is not prone to large-scale paralysis", and also has the advantages of centralized "easy to manage".
Strong loading capacity
Support new load requirements
Support new load requirements
• Support new workloads in modern data centers
• Allows 100% load unbalance of three phases
Integrated Design
The ARRAY 3A3 Pro system cabinet uses a standard 19-inch 2-meter cabinet. The parallel devices required for parallel connection of UPS modules are built into the system cabinet. No special installation is required. Parallel connection can be achieved by inserting the modules. Therefore, the additional parallel wires, input and output switches, and parallel boards that are necessary for traditional UPS parallel connection are omitted, which not only greatly saves the cost of installation materials, but also saves installation time.
The ARRAY 3A3 Pro system cabinet uses a standard 19-inch 2-meter cabinet. The parallel devices required for parallel connection of UPS modules are built into the system cabinet. No special installation is required. Parallel connection can be achieved by inserting the modules. Therefore, the additional parallel wires, input and output switches, and parallel boards that are necessary for traditional UPS parallel connection are omitted, which not only greatly saves the cost of installation materials, but also saves installation time.
It also improves the safety of electricity use and the beauty of the computer room, reduces the difficulty of maintenance and management, thereby indirectly improving system reliability.
ARRAY 3A3 Pro, when paired with Santak Precision Power Distribution Cabinet, ARRAY Battery Cabinet, ARRAY Network Cabinet and other options, can provide customers with an integrated solution that is beautiful overall, saves installation space, and facilitates customer maintenance and management.
ARRAY 3A3 Pro, when paired with Santak Precision Power Distribution Cabinet, ARRAY Battery Cabinet, ARRAY Network Cabinet and other options, can provide customers with an integrated solution that is beautiful overall, saves installation space, and facilitates customer maintenance and management.
Excellent electrical performance
• High input power factor: >0.99
• Low input harmonic current: <5%
• Output power factor: 0.9
• Output voltage accuracy: ±1%
• High system efficiency: up to 94%
• Strong overload capability: 110%~130% load can be overloaded for 10 minutes
• Support variable frequency mode 50Hz input, 60Hz output or 60Hz input, 50Hz output
Environmental friendly
Component selection complies with EU RoHs directive and China RoHs requirements;
Comply with the EMC level requirements of IEC 61000-4 and have good electromagnetic compatibility;
Component selection complies with EU RoHs directive and China RoHs requirements;
Comply with the EMC level requirements of IEC 61000-4 and have good electromagnetic compatibility;
Full digital control
The ARRAY 3A3 Pro module uses DSP as the central controller. Its powerful computing power can replace most of the control functions completed by hardware in traditional UPS with software. Not only does the reliability and accuracy greatly improve, but it also facilitates upgrades and maintenance.
The ARRAY 3A3 Pro module uses DSP as the central controller. Its powerful computing power can replace most of the control functions completed by hardware in traditional UPS with software. Not only does the reliability and accuracy greatly improve, but it also facilitates upgrades and maintenance.
Support cabinet merging
ARRAY 3A3 Pro supports cabinet combination, and the combined system capacity can reach 240kVA. The parallel system shares the same set of batteries. The battery pack adopts a 12V×32/34/36/38/40-cell design. The configuration is flexible and can make full use of the existing battery system. If a single battery is defective, only the defective battery needs to be removed without replacing the entire battery. battery pack.
ARRAY 3A3 Pro supports cabinet combination, and the combined system capacity can reach 240kVA. The parallel system shares the same set of batteries. The battery pack adopts a 12V×32/34/36/38/40-cell design. The configuration is flexible and can make full use of the existing battery system. If a single battery is defective, only the defective battery needs to be removed without replacing the entire battery. battery pack.
Easy to install
The ARRAY 3A3 Pro system cabinet uses a 2-meter standard 19-inch cabinet. The parallel devices required for parallel connection of UPS modules are built into the system cabinet. No special installation is required. Parallel connection can be achieved by inserting the modules. Therefore, the additional parallel wires, input and output switches, and parallel boards that are necessary for traditional UPS parallel connection are omitted, which not only greatly saves the cost of installation materials and labor costs, but also improves the safety of electricity and the safety of the computer room. It is beautiful and reduces the difficulty of maintenance and management, thereby indirectly improving system reliability.
The ARRAY 3A3 Pro system cabinet uses a 2-meter standard 19-inch cabinet. The parallel devices required for parallel connection of UPS modules are built into the system cabinet. No special installation is required. Parallel connection can be achieved by inserting the modules. Therefore, the additional parallel wires, input and output switches, and parallel boards that are necessary for traditional UPS parallel connection are omitted, which not only greatly saves the cost of installation materials and labor costs, but also improves the safety of electricity and the safety of the computer room. It is beautiful and reduces the difficulty of maintenance and management, thereby indirectly improving system reliability.
Fully modular design
ARRAY 3A3 Pro adopts a fully modular design with easy-to-plug function. The entire UPS power supply system consists of a system cabinet, UPS module, communication module and display module. It can optionally be equipped with electrical panels, various smart cards, lightning protection modules, etc. to meet customer customization needs. Each UPS module is a fully functional 15kVA UPS. Through wireless parallel control technology and intelligent communication protocols, the UPS module, communication module and display module can be replaced online without affecting the normal work of other parts. The newly added modules It can be added to the system without any calibration action, making it easy to expand and maintain online.
ARRAY 3A3 Pro adopts a fully modular design with easy-to-plug function. The entire UPS power supply system consists of a system cabinet, UPS module, communication module and display module. It can optionally be equipped with electrical panels, various smart cards, lightning protection modules, etc. to meet customer customization needs. Each UPS module is a fully functional 15kVA UPS. Through wireless parallel control technology and intelligent communication protocols, the UPS module, communication module and display module can be replaced online without affecting the normal work of other parts. The newly added modules It can be added to the system without any calibration action, making it easy to expand and maintain online.
Humanized operation interface and complete power management software
The system uses a 7-inch large color LCD touch screen as the operation interface, with graphical display, operation and information reading are clear at a glance; it supports Chinese and English languages; the LCD is equipped with password protection functions such as shutdown and configuration to prevent misoperation; paired with WINPOWER monitoring software, Power management just got easier. If you choose the NMC card, you can achieve remote monitoring and management.
The system uses a 7-inch large color LCD touch screen as the operation interface, with graphical display, operation and information reading are clear at a glance; it supports Chinese and English languages; the LCD is equipped with password protection functions such as shutdown and configuration to prevent misoperation; paired with WINPOWER monitoring software, Power management just got easier. If you choose the NMC card, you can achieve remote monitoring and management.
ARRAY 3A3 Pro application places
Data centers, public security systems, power dispatch centers, financial data centers, education systems, radio and television systems, industrial control systems, medical centers, traffic control hubs, tobacco systems, etc.
Data centers, public security systems, power dispatch centers, financial data centers, education systems, radio and television systems, industrial control systems, medical centers, traffic control hubs, tobacco systems, etc.
Flexible system configuration
Due to the fully modular design of ARRAY 3A3 Pro, in a single cabinet, users can choose different number of modules according to their needs to construct a UPS system with a suitable capacity between 15kVA and 150kVA, and the configuration is very flexible. If the user leaves a margin in the switch and power line when installing the machine for the first time, then when the load increases, the capacity of the UPS can be expanded by simply purchasing a UPS module. This completely avoids the shortcomings of excessive initial equipment investment in traditional UPS and truly achieves "Invest while growing" saves users valuable funds.
Due to the fully modular design of ARRAY 3A3 Pro, in a single cabinet, users can choose different number of modules according to their needs to construct a UPS system with a suitable capacity between 15kVA and 150kVA, and the configuration is very flexible. If the user leaves a margin in the switch and power line when installing the machine for the first time, then when the load increases, the capacity of the UPS can be expanded by simply purchasing a UPS module. This completely avoids the shortcomings of excessive initial equipment investment in traditional UPS and truly achieves "Invest while growing" saves users valuable funds.
Easy to operate
• Output voltage can be set via LCD: 208/ 220/ 230/ 240VAC, 220VAC (default)
• The number of batteries is adjustable and configurable through LCD, supporting 32/34/36/38/40 batteries
• Password protection can be set for shutdown, configuration, etc. to prevent misoperations
• Store historical events and can record approximately 10,000 pieces of status information
Intelligent control
Through the NMC intelligent monitoring card, it supports remote management and control based on IE browser, and can also support remote monitoring through RS232, RS485, USB and dry contact.
Through the NMC intelligent monitoring card, it supports remote management and control based on IE browser, and can also support remote monitoring through RS232, RS485, USB and dry contact.
Smart charging method
ARRAY 3A3 Pro adopts a three-stage charging method. The first stage is high-current constant current charging, which can quickly recharge about 90% of the power; the second stage is pulse charging, which can even out the battery characteristics and fully charge the battery; the third stage is constant current charging. The voltage is maintained to ensure no loss of power. This can achieve a good balance between fast charging and extending battery life, saving battery costs for users. The charging current is adjustable to meet fast charging and match batteries with different capacities, which not only meets the specific needs of customers but also extends battery life.
ARRAY 3A3 Pro adopts a three-stage charging method. The first stage is high-current constant current charging, which can quickly recharge about 90% of the power; the second stage is pulse charging, which can even out the battery characteristics and fully charge the battery; the third stage is constant current charging. The voltage is maintained to ensure no loss of power. This can achieve a good balance between fast charging and extending battery life, saving battery costs for users. The charging current is adjustable to meet fast charging and match batteries with different capacities, which not only meets the specific needs of customers but also extends battery life.
ARRAY System Solutions
ARRAY system solutions provide you with resources from people to equipment to software to meet your data center power management needs. It not only has high reliability and safety, but also reduces your operating costs, promotes effective use of funds, and reduces project risks. ARRAY system solutions will help you build a reliable, efficient and secure data center.
ARRAY system solutions provide you with resources from people to equipment to software to meet your data center power management needs. It not only has high reliability and safety, but also reduces your operating costs, promotes effective use of funds, and reduces project risks. ARRAY system solutions will help you build a reliable, efficient and secure data center.
ARRAY system's overall solution for small and medium-sized data centers and IT applications
The ARRAY system is a sub-series of Shante's overall solution designed specifically for data centers. It is an overall solution specially launched for computer rooms and small and medium-sized data centers. It provides customers with services from planning, design, construction, management, maintenance and upgrades. Provide efficient, safe and reliable overall solutions. The characteristics of ARRAY system solution are that the solution products can be placed in standard network cabinets, integrated design, modular, customized, high-availability power system, intelligent management, one-stop service, providing 7×24 hours all year round. Services, providing customers with comprehensive services in terms of power quality, input and output distribution, cabinets, refrigeration and intelligent management.
The ARRAY system is a sub-series of Shante's overall solution designed specifically for data centers. It is an overall solution specially launched for computer rooms and small and medium-sized data centers. It provides customers with services from planning, design, construction, management, maintenance and upgrades. Provide efficient, safe and reliable overall solutions. The characteristics of ARRAY system solution are that the solution products can be placed in standard network cabinets, integrated design, modular, customized, high-availability power system, intelligent management, one-stop service, providing 7×24 hours all year round. Services, providing customers with comprehensive services in terms of power quality, input and output distribution, cabinets, refrigeration and intelligent management.
ARRAY overall solution system introduction
Data computer room classification: According to the American computer room construction standards, the availability level of the data computer room is divided into four levels:
Data computer room classification: According to the American computer room construction standards, the availability level of the data computer room is divided into four levels:
As the core computer room of enterprises, groups and institutions, it is very important for the load in the computer room to operate normally. The construction level of the computer room should be selected according to the importance of the load. The hot-swappable modular power system provides customers with availability of more than 99.999, and is easy for customers to invest as they grow. The easy-to-expand cabinet system facilitates early planning, construction and upgrades for customers, and provides an intelligent monitoring system for customer use and management.
Data center trends and Santak’s solutions
• Electrical safety - high system availability. Santak continues to provide high-availability UPS and computer room solution products through technological innovation.
• Pursuing the unified design and management of the overall computer room - Shante has a wealth of overall solutions for data computer rooms, including various types of UPS, server cabinets, air conditioners, power distribution cabinets, monitoring software and hardware and other products.
• Higher temperatures in the data center– Santak’s air flow management system supports data center design.
• Modular data center - Shante's engineering services have cooperated with many large companies to design and apply modular data centers.
• Sustainable Data Centers – Shante has extensive experience in designing sustainable buildings and data centers and also provides products.
Component introduction
Precision distribution cabinet PPM
In view of the current situation where single point failure is prone to occur in computer room power distribution, Shante Company has designed a professional PPM (Precision Power Module) series of precision power distribution cabinet products, which brings a new experience to the construction and management of computer room power distribution. It is mainly used in Data centers and computer rooms in finance, telecommunications, enterprises, governments, etc. The entire power distribution system adopts a standard 19-inch 42U network cabinet and modular structure design, and is equipped with a wealth of optional accessories. It can tailor personalized high-reliability power distribution products for customers based on the actual needs of the computer room.
Precision distribution cabinet PPM
In view of the current situation where single point failure is prone to occur in computer room power distribution, Shante Company has designed a professional PPM (Precision Power Module) series of precision power distribution cabinet products, which brings a new experience to the construction and management of computer room power distribution. It is mainly used in Data centers and computer rooms in finance, telecommunications, enterprises, governments, etc. The entire power distribution system adopts a standard 19-inch 42U network cabinet and modular structure design, and is equipped with a wealth of optional accessories. It can tailor personalized high-reliability power distribution products for customers based on the actual needs of the computer room.
• Capacity: 20-300kVA
• Output voltage: 220VAC
• Size: Standard 19-inch network cabinet(600*1000*2000mm)
Features
• With LCD display panel, branch switch current monitoring is optional
• With intelligent interface, indicator light alarm and buzzer alarm
• Historical operation and fault records are stored, and branch current limit value settings are available.
• There are power records and load curve records
ePDU
Santak has a wide range of rack-mounted power distribution units on the market, called Santak ePDU. Designed specifically for data centers and IT environments, this power distribution product line provides manageability, control and power usage monitoring down to the outlet. All ePDUs feature rugged aluminum or steel chassis with enclosed structural circuit breakers and switches. Santak ePDU is specially designed for data centers - high reliability, stable power supply, rugged and durable.
Santak has a wide range of rack-mounted power distribution units on the market, called Santak ePDU. Designed specifically for data centers and IT environments, this power distribution product line provides manageability, control and power usage monitoring down to the outlet. All ePDUs feature rugged aluminum or steel chassis with enclosed structural circuit breakers and switches. Santak ePDU is specially designed for data centers - high reliability, stable power supply, rugged and durable.
Rack Power Distribution Unit
PDU
In order to solve the safety problems of users' cabinet power distribution, Shante has designed professional cabinet power distribution units (OU PDU). The product has the characteristics of safe and reliable materials, optimized internal structure design, convenient and flexible installation methods and tailor-made. It is widely used in the power distribution of electrical equipment in various standard cabinets and non-standard cabinets. It does not occupy the effective space of the cabinet and provides a safe and reliable power distribution solution for rack-mounted electrical equipment.
PDU
In order to solve the safety problems of users' cabinet power distribution, Shante has designed professional cabinet power distribution units (OU PDU). The product has the characteristics of safe and reliable materials, optimized internal structure design, convenient and flexible installation methods and tailor-made. It is widely used in the power distribution of electrical equipment in various standard cabinets and non-standard cabinets. It does not occupy the effective space of the cabinet and provides a safe and reliable power distribution solution for rack-mounted electrical equipment.
ARRAY Cabinet
• The frame is welded by nine-fold profiles and high-quality special tees. The overall structure is solid and the static load reaches 1000kg.
• Unique high-density mesh front door and split mesh rear door, the ventilation area of the ventilation holes is not less than 69% of the door area, and the appearance is elegant and stylish
• The left and right side doors can be quickly disassembled and installed for convenient work
• Casters and supporting feet can be installed at the same time for easy movement and fixation
• Interchangeable door hinges, top cable entry with rubber cover
• Depth is adjustable (25mm unit), capacity interval height is adjustable (1U unit)
• A wide range of replaceable accessories
Switchboard
• Capacity: 16A~63A *1P*15 channels Output voltage: 220VAC
• Dimensions: Standard 19-inch width, 3U high
• Can be built into MP, 3A3 to save user space
• Can be superimposed to realize power distribution of more output branches
Surveillance System
Winpower
SANTAK Company provides Winpower series UPS monitoring software to realize the intelligent management function of UPS. The application of Winpower can help users monitor one or more UPS connected to the machine, and can also monitor one or more UPS in the local area network or the Internet through the machine.
The software supports Windows, Linux and Unix operating systems, and can display UPS, mains, battery, and load information in the same window. When an abnormality occurs, users can be notified by sending broadcast messages, E-mails, mobile text messages, etc. The automatic data protection function and network shutdown function can automatically close most running programs and save related documents, maximizing the protection of the network system.
Through this software, you can set the UPS scheduled battery self-test and power on and off functions. It also has data (including UPS, mains, battery, load) log and event log functions to facilitate the administrator to perform daily maintenance of the UPS system.
Winpower
SANTAK Company provides Winpower series UPS monitoring software to realize the intelligent management function of UPS. The application of Winpower can help users monitor one or more UPS connected to the machine, and can also monitor one or more UPS in the local area network or the Internet through the machine.
The software supports Windows, Linux and Unix operating systems, and can display UPS, mains, battery, and load information in the same window. When an abnormality occurs, users can be notified by sending broadcast messages, E-mails, mobile text messages, etc. The automatic data protection function and network shutdown function can automatically close most running programs and save related documents, maximizing the protection of the network system.
Through this software, you can set the UPS scheduled battery self-test and power on and off functions. It also has data (including UPS, mains, battery, load) log and event log functions to facilitate the administrator to perform daily maintenance of the UPS system.
EMD card
EMD card (also known as environmental monitoring card) is a new product launched by Santak that can provide environmental monitoring. This product can be used with the NMC card to monitor ambient temperature and humidity. It also reserves two switch values to monitor smoke detection, vibration or access control signals.
EMD card (also known as environmental monitoring card) is a new product launched by Santak that can provide environmental monitoring. This product can be used with the NMC card to monitor ambient temperature and humidity. It also reserves two switch values to monitor smoke detection, vibration or access control signals.
NMC smart card
NMC smart card is an intelligent monitoring software provided by Santak based on TCP/IP, SNMP protocols and embedded Web server for remote UPS management. Users can manage the UPS through a Web browser, SNMP network management software, Winpower Enterprise Edition monitoring software, and Winpower Plus DB monitoring software, and keep abreast of various status information such as mains power, battery, UPS, load, etc., and also provide UPS power status and Record files generated by UPS events, and can set scheduled battery self-tests and power-on/off functions for the UPS.
NMC smart card is an intelligent monitoring software provided by Santak based on TCP/IP, SNMP protocols and embedded Web server for remote UPS management. Users can manage the UPS through a Web browser, SNMP network management software, Winpower Enterprise Edition monitoring software, and Winpower Plus DB monitoring software, and keep abreast of various status information such as mains power, battery, UPS, load, etc., and also provide UPS power status and Record files generated by UPS events, and can set scheduled battery self-tests and power-on/off functions for the UPS.
Winpower CMC
It is a communication accessory that cooperates with users to achieve remote one-to-one and one-to-many power management. It supports ModBus protocol and can output standard RS485. Its RS485 signal transmission distance can reach 1200 meters. Use it to achieve remote machine monitoring.
It is a communication accessory that cooperates with users to achieve remote one-to-one and one-to-many power management. It supports ModBus protocol and can output standard RS485. Its RS485 signal transmission distance can reach 1200 meters. Use it to achieve remote machine monitoring.
AS-400 dry contact card
Provides a dry contact interface for UPS peripheral monitoring, uses contact signals to reflect the UPS operating status, and can also accept external remote shutdown commands. Users may realize remote monitoring of the UPS system through external lines.
Provides a dry contact interface for UPS peripheral monitoring, uses contact signals to reflect the UPS operating status, and can also accept external remote shutdown commands. Users may realize remote monitoring of the UPS system through external lines.
USB+RS232 communication card
Provide USB and RS232 interfaces for UPS to facilitate communication between UPS and computer.
Provide USB and RS232 interfaces for UPS to facilitate communication between UPS and computer.
ARRAY UPS Typical application scenarios
Suitable for industrial application scenarios
Suitable for industrial application scenarios
In general industrial applications, most of the equipment that requires UPS power supply protection are precision instruments and equipment. The load type is mainly a three-phase motor load. The starting transient current is large, causing serious pollution to the city power. The output accuracy is required to be high, and the load capacity is generally large (10kVA- 100kVA). ARRAY 3A3 Pro has excellent input power factor correction and overload capabilities, and the output voltage accuracy is high ±1%. It can easily cope with the output surge current at the moment of starting the inductive load, and no matter how bad the load harmonic current is, the input current can always maintain sinusoidal The total harmonic distortion is less than 5%, which reduces the harmonic interference to the power grid. ARRAY 3A3 Pro has frequency conversion function, which is especially suitable for special loads that require fixed frequency (50Hz/60Hz).
Suitable for small and medium-sized data computer rooms or office scenarios
UPS is mainly used in small and medium-sized data computer rooms or offices for computers, network equipment, office equipment, etc. The type is generally single-phase switching power supply load, and the total load is approximately between 5kVA-25kVA. Since office space is generally compact, the UPS power supply system should not take up too much space. In this way, the all-in-one ARRAY MP5-30KS is perfect. The 1.6m and 2m high dark cabinets can integrate UPS, charging, lightning protection, power distribution, monitoring and battery, which not only saves space but is also beautiful and elegant.
UPS is mainly used in small and medium-sized data computer rooms or offices for computers, network equipment, office equipment, etc. The type is generally single-phase switching power supply load, and the total load is approximately between 5kVA-25kVA. Since office space is generally compact, the UPS power supply system should not take up too much space. In this way, the all-in-one ARRAY MP5-30KS is perfect. The 1.6m and 2m high dark cabinets can integrate UPS, charging, lightning protection, power distribution, monitoring and battery, which not only saves space but is also beautiful and elegant.
Suitable for large central computer room scenarios
Large central computer rooms generally include student computer rooms, computing centers, network centers in schools and research institutes, business halls of stock exchanges, Internet cafes, large corporate offices, etc. This type of load equipment is mainly computers, network equipment, etc., but the number is generally more than 50 units, and the total load is between 20kVA-100kVA. This type of application generally requires only one ARRAY 3A3 Pro-90KS or ARRAY 3A3 Pro-120KS to meet the requirements.
Large central computer rooms generally include student computer rooms, computing centers, network centers in schools and research institutes, business halls of stock exchanges, Internet cafes, large corporate offices, etc. This type of load equipment is mainly computers, network equipment, etc., but the number is generally more than 50 units, and the total load is between 20kVA-100kVA. This type of application generally requires only one ARRAY 3A3 Pro-90KS or ARRAY 3A3 Pro-120KS to meet the requirements.
Suitable for high reliability large data center scenarios
High-reliability large-scale data centers mainly include switch rooms of communication companies, data centers of banks, air traffic control centers of civil aviation, various central computer rooms of government agencies, and applications in the national defense field. This type of application takes high reliability as its ultimate goal, has low cost pressure, and often has redundant backups for each system. The loads are mainly computers, network equipment and some special equipment, and the total load can reach more than 1000kVA. In order to meet the requirements of large load, long backup time, high reliability, and low risk for this type of application, multiple ARRAY 3A3 Pro models can be used to form a regional power supply system. Each area uses two UPSs to form a dual bus system. Each UPS maintains N + It should be pointed out in particular that this type of application is generally equipped with a backup generator to ensure almost unlimited backup time, so the UPS's adaptability to various generators is also very important. The ARRAY 3A3 Pro model does not have high requirements for generators. Currently, The output of generators from mainstream brands on the market is acceptable.
High-reliability large-scale data centers mainly include switch rooms of communication companies, data centers of banks, air traffic control centers of civil aviation, various central computer rooms of government agencies, and applications in the national defense field. This type of application takes high reliability as its ultimate goal, has low cost pressure, and often has redundant backups for each system. The loads are mainly computers, network equipment and some special equipment, and the total load can reach more than 1000kVA. In order to meet the requirements of large load, long backup time, high reliability, and low risk for this type of application, multiple ARRAY 3A3 Pro models can be used to form a regional power supply system. Each area uses two UPSs to form a dual bus system. Each UPS maintains N + It should be pointed out in particular that this type of application is generally equipped with a backup generator to ensure almost unlimited backup time, so the UPS's adaptability to various generators is also very important. The ARRAY 3A3 Pro model does not have high requirements for generators. Currently, The output of generators from mainstream brands on the market is acceptable.
Service system
Santak Power takes it as its own responsibility to meet customer needs and has always been committed to improving the connotation and value of services. It has established a multi-faceted, high-quality and standardized customer service system, forming a customer call center, on-site service outlets and maintenance, technical support and training. , spare parts support, and service solutions as the main body of the "five-in-one" service structure. Hundreds of professional and skilled engineers are ready to provide you with one-stop service and support. The service architecture design based on customer experience not only allows our customers to enjoy Shante International's first-class service levels easily and quickly, but also meets customers' personalized service needs to the greatest extent through rich service product designs and helps customers realize their investments.
Santak Power takes it as its own responsibility to meet customer needs and has always been committed to improving the connotation and value of services. It has established a multi-faceted, high-quality and standardized customer service system, forming a customer call center, on-site service outlets and maintenance, technical support and training. , spare parts support, and service solutions as the main body of the "five-in-one" service structure. Hundreds of professional and skilled engineers are ready to provide you with one-stop service and support. The service architecture design based on customer experience not only allows our customers to enjoy Shante International's first-class service levels easily and quickly, but also meets customers' personalized service needs to the greatest extent through rich service product designs and helps customers realize their investments.
Three-year original factory free warranty provided by SANTAK
Santak Power Service outlets are almost all over provincial capital cities. More than 100 highly skilled service engineers are always waiting for customers' calls. They satisfy customers with the on-site service enthusiasm of "getting closer to customers and responding to customers faster" and the strict service standards of "solving the problem once and arriving at the service site in time". service needs, allowing customers to appreciate the elegance of world-class services.
Customers only need to contact our customer service center, and we will quickly arrange engineers to contact the customer to solve the customer's problem.
Customers only need to contact our customer service center, and we will quickly arrange engineers to contact the customer to solve the customer's problem.
Customer training
Santak Power has training centers and product display centers in Beijing, Shanghai, and Shenzhen. It has various types of products and prototypes, and provides customers with theoretical and practical training in operation, startup, and maintenance services. Every year, Santak Power will also release an annual training plan for users and dealers to help customers better understand and use Santak Power products.
To learn more about training courses and arrangements, please contact the call center.
Santak Power has training centers and product display centers in Beijing, Shanghai, and Shenzhen. It has various types of products and prototypes, and provides customers with theoretical and practical training in operation, startup, and maintenance services. Every year, Santak Power will also release an annual training plan for users and dealers to help customers better understand and use Santak Power products.
To learn more about training courses and arrangements, please contact the call center.
Recommended Products
