Industry-leading protection
High density, double-conversion On-Line power protection delivers clean power with zero transfer time, and helps guard your critical electronics and data against dangerous power conditions and disturbances.

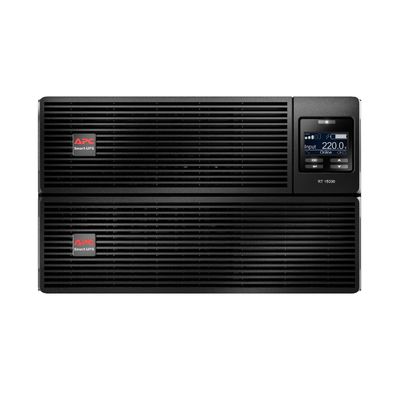

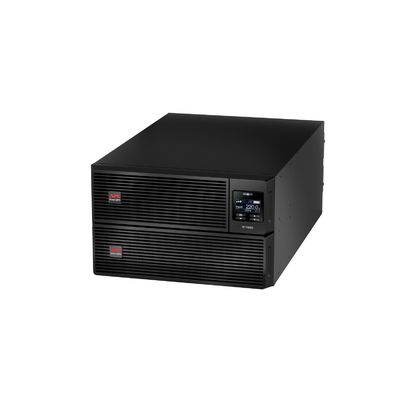

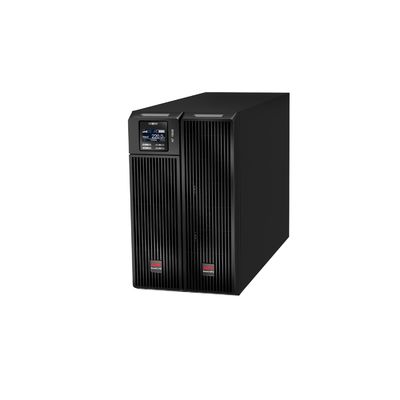

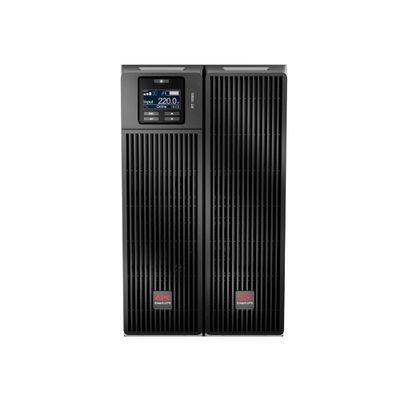

APC Smart UPS RT 15kVA On Line 15kW Rack/Tower 230V/380V/415V SURT15KUXI
Product Summary
Discover Smart-UPS On-Line Industry-Leading Power Protection A compact, high-density UPS for servers, voice and data networks, medical labs and light industrial applications. Double-conversion On-Line technology provides consistent, clean power and helps protect your IT equipment at the most ...
Key Attributes
Brand Name:
APC
Model Number:
SURT15KUXI-CH
Place of Origin:
China
Certification:
CE
MOQ:
1
Payment Terms:
L/C, D/A, D/P, T/T
Product Custom Attributes
Highlight
APC Smart UPS 15kVA
,apc smart ups rt 15kva
,apc 15kva online ups
Nominal Input Voltage:
230V,380V,415V
Control Panel:
Multi-function LCD Status And Control Console
Audible Alarm:
Alarm When On Battery, Distinctive Low Battery Alarm, Configurable Delays
Nominal Output Voltage:
230V,380V,415V
Input Frequency:
50/60 Hz
Input Connections:
NEMA L5-30P, NEMA L6-30P, Hard Wire 3-wire (2PH + G)
Battery Type:
Maintenance-free Sealed Lead-Acid Battery With Suspended Electrolyte : Leakproof
Surge Energy Rating:
480 Joules
Output Connections:
NEMA 5-15R, NEMA 5-20R, NEMA L5-20R, NEMA L6-20R, NEMA L14-30R, Hard Wire 3-wire (H N + G)
Topology:
Double Conversion Online
Output Power Capacity:
15kVA/15kW
Interface Port(S):
DB-9 RS-232, SmartSlot, USB
Product Description
Discover Smart-UPS On-Line
Benefits of Smart-UPS On-Line
Reliable source of uninterrupted power
Provides a reliable source of uninterrupted power even in the most demanding power environments, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
More runtime for business continuity
Designed with the ability to meet aggressive runtime requirements, Smart-UPS On-Line can be configured with multiple live swappable battery packs that not only enable extended runtime but can be replaced without powering down.
Adaptability
- Rack/Tower convertible - Rack-mount and tower installation options enable flexible setup.
- Extended runtime external battery options - Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Manageability
- Serial connectivity - Provides management of the UPS via a serial port.
- SmartSlot and/or Embedded NMC - Customize UPS capabilities with management cards.
- EcoStruxure Ready - Provides remote UPS monitoring and management options.
- LED status indicators and audible alarms - Quickly understand unit and power status with visual and audible indicators.
Availability
- Automatic internal bypass - Supplies utility power to the connected loads in the event of a UPS power overload or fault.
- Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
- Live-swap capable - Add or swap batteries without interrupting the UPS load.
- Intelligent battery management - Maximizes battery performance, life, and reliability through intelligent, precision charging.
Protection
- Frequency and voltage regulation - Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
- Safety-agency approved - Ensures the product has been tested and approved to work with the connected service provider equipment and within the specified environment.
- Resettable circuit breaker - Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
- Cold-start capable - Provides temporary battery power when the utility power is out.
Serviceability
- Disconnected battery notification - Warns when a battery is not available to provide backup power.
- Predictive failure notification - Provides early-warning fault analysis ensuring proactive component replacement.
- Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- User-replaceable batteries - Increases availability by allowing a trained user to perform upgrades and replacements of the batteries.
Specifications
| Lead time | Usually in Stock |
|---|
Run time for load
WMin-max: 1500-15000 W
|
5min 34s
|
|---|---|
| Main Input Voltage | 380...415 V 230 V |
| Other Input Voltage | 220...240 V |
| Main Output Voltage | 380...415 V 230 V |
| Other Output Voltage | 230 V |
| Rated power in W | 15000 W |
| Rated power in VA | 15000 VA |
| Output connector type | Hard wire 5-wire (3P + N + E) 1 Hard wire 3-wire (1P + N + E) 1 IDC connector 3-wire (1P + N + E) 1 |
| Number of rack unit | 7U |
| Provided equipment | 1 x USB cable 1 x rack mounting brackets 1 x stabilization/wall mounting feet 1 x installation manual |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| Battery type | Lead-acid battery |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 4 h |
| Number of battery replacement quantity | 2 |
| Battery voltage | +/- 192 V |
| Battery charger power | 2160 W rated |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC172 |
| Extended runtime | 1 |
| UPS type | Double conversion online |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Colour | Black (RAL 9005) |
|---|---|
| height | 30.6 cm |
| Width | 44.0 cm |
| Depth | 70.0 cm |
| Net weight | 142.5 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting position | Horizontal |
| Network frequency | 40...70 Hz auto-sensing |
|---|---|
| Number of input connectors | 1 hard wire 5 wire (3P + N + E) 1 hard wire 3-wire (1P + N + E) |
| Input voltage limits | 160...285 V full load 380 V |
| Maximum input current | 66 A |
| Switching current capacity | 100 A |
| Input harmonic distortion | Less than 5 % for full load |
| Input current | 66 A (1 phase) 66 A (3 phases) |
| Load power factor | From 0.9 leading to 1 lagging |
| Maximum configurable power in VA | 15000 VA |
|---|---|
| Maximum configurable power in W | 15000 W |
| Output frequency | 50/60 Hz +/- 4 Hz sync to mains |
| Wave type | Sine wave |
| Output overload operation | 60 seconds at 125% and 30 seconds at 150% |
| Efficiency | 94 % |
| Harmonic distortion | Less than 5 % |
| Crest factor | 3 : 1 |
| Bypass type | Internal bypass (automatic and manual) |
| Additional information | Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage |
| product certifications | CE UKCA TISI |
|---|---|
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 60204-2 |
| ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...3000 m |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 58 dBA |
| heat dissipation | 2866 Btu/h |
| IP degree of protection | IP20 |
| Free slots | 0 |
|---|---|
| Preinstalled device | Network management card 3 with environmental monitoring |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency power off | Yes |
| Surge energy rate | 600 J |
|---|---|
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 53.5 cm |
| Package 1 Width | 79.0 cm |
| Package 1 Length | 59.0 cm |
| Package 1 Weight | 157.2 kg |
| Warranty | 2 years repair or replace (excluding battery) and 2 years for battery |
|---|
| Lead time | Usually in Stock |
|---|
Run time for load
WMin-max: 1000-10000 W
|
3min 44s
|
|---|---|
| Main Input Voltage | 208 V |
| Other Input Voltage | 240 V |
| Main Output Voltage | 208 V |
| Other Output Voltage | 240 V |
| Kw Rating | 10000 W |
| Rated power in VA | 10000 VA |
| output connection type | 6 IEC 60320 C13 3 IEC Jumpers 4 IEC 60320 C19 |
| Output connector type | Hard Wire 3-wire (2PH + G) 1 |
| Provided equipment | CD with software Documentation CD Installation guide Temperature Probe USB cable Warranty card Web/SNMP Management Card |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| Battery Type | Lead-Acid battery |
| Included Battery Modules | 0 |
| Typical recharge time | 1.5 h |
| RBC Quantity | 2 |
| Battery Voltage | +/-192 V (split battery referenced to neutral) |
| Battery Charge Power (Watts) | 1191 W rated |
| Battery Life | 3…5 year(s) |
| Replacement battery | APCRBC140 |
| Extendable Run Time | 1 |
| Topology | Double Conversion Online |
|---|---|
| product web sub-family | High density |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| color | Black |
|---|---|
| Height | 17.01 in (43.2 cm) |
| Width | 10.35 in (26.3 cm) |
| Depth | 28.15 in (71.5 cm) |
| Net Weight | 245.99 lb(US) (111.58 kg) |
| Mounting Location | Front |
| Mounting preference | No preference |
| Mounting Mode | Rack-mounted with kit |
| Two post mountable | 0 |
| USB compatible | Yes |
| Input Frequency | 40 - 70 Hz auto-sensing |
|---|---|
| Number of input connectors | 1 Hard Wire 3-wire (2PH + G) |
| Efficiency at full load | 100...275 V adjustable (half load) |
| Maximum configurable power in VA | 10000 VA |
|---|---|
| Max Configurable Power (Watts) | 10000 W |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz sync to mains |
| Wave type | Sine wave |
| Harmonic distortion | Less than 2% |
| Crest factor | 3 : 1 |
| Bypass type | Internal Bypass (Automatic and Manual) |
| Product Certifications | ENERGY STAR V2.0 (USA) FCC part 15 class A UL 1778 |
|---|
| Ambient Air Temperature for Operation | 32…104 °F (0…40 °C) |
|---|---|
| Relative Humidity | 0…95 % non-condensing |
| Operating altitude | 0...10000 ft |
| Ambient Air Temperature for Storage | 5…113 °F (-15…45 °C) |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…50000 ft (0.00…15240.00 m) |
| Acoustic level | 55 dBA |
| heat dissipation | 2490 Btu/h |
| IP degree of protection | IP20 |
| Free slots | 1 |
|---|---|
| Pre-Installed SmartSlot™ Cards | Network management card 3 with environmental monitoring |
| Alarm | Audible and visible alarms : prioritized by severity |
| Emergency Power Off (EPO) | Yes |
| Surge energy rating | 480 J |
|---|
| GTIN | 731304304289 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 18.15 in (46.1 cm) |
| Package 1 Width | 39.37 in (100 cm) |
| Package 1 Length | 23.62 in (60 cm) |
| Package 1 Weight | 279.00 lb(US) (126.55 kg) |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
|---|
