Vertiv GXT5-3000IRT2UXL 3000VA 3000W Double Conversion Online Rack Tower UPS
| Place of Origin | China |
|---|---|
| Brand Name | Vertiv |
| Certification | CE |
| Model Number | Vertiv GXT5 UPS |
| Packaging Details | cartons |
| Delivery Time | 60days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/months |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Vertiv GXT5-3000IRT2UXL | Power Level | 750VA - 3000VA |
|---|---|---|---|
| Technology | 230 VAC | Product Type | Tower UPS/Rack-mounted UPS |
| Input Voltage | 230 VAC | Rated Frequency | 50 Hz / 60 Hz |
| Frequency Range | 40-70Hz; Auto Sensing | Output Voltage | 200/208/220/230/240 VAC |
| Rated Frequency | 50-60Hz | Waveform | Sine Wave |
| Battery Type | Valve-regulated,non-spillable, Lead Acid | Rated Voltage | 36 Vdc, 48 Vdc, 72 Vdc |
| Charger Current | Nominal 2.2 A; Maximum 8 A | Operating Temperature | Full Power Up To 40 ºC (up To 50 ºC With Derating) |
| Storage Temperature, °C | - 15 To + 40 | Relative Humidity | 0 To 95% Non-condensing |
| Operating Elevation | Up To 3,000 M At 25°C Without Derating | Audible Noise | 46 DB |
| Safety | UL-1788 ,C-UL Listed, IEC 62040-1 2 EN 62040-1 | RFI/EMI | CISPR22 Class A (RFI) / FCC Part 15 (Class A) |
| Transportation | ISTA Procedure 1A | ||
| Highlight | Vertiv GXT5-3000IRT2UXL,3000W Double Conversion Online UPS,Double Conversion Rack Tower UPS |
||
You can tick the products you need and communicate with us in the message board.
| Model | Power | |
|---|---|---|
| GXT5-750IRT2UXL | 750 VA / 750 W | |
| GXT5-1000IRT2UXL | 1000 VA / 1000 W | |
| GXT5-1500IRT2UXL | 1500 VA / 1500 W | |
| GXT5-2000IRT2UXL | 2000 VA / 2000 W | |
| GXT5-3000IRT2UXL | 3000 VA / 3000W |
Product Description

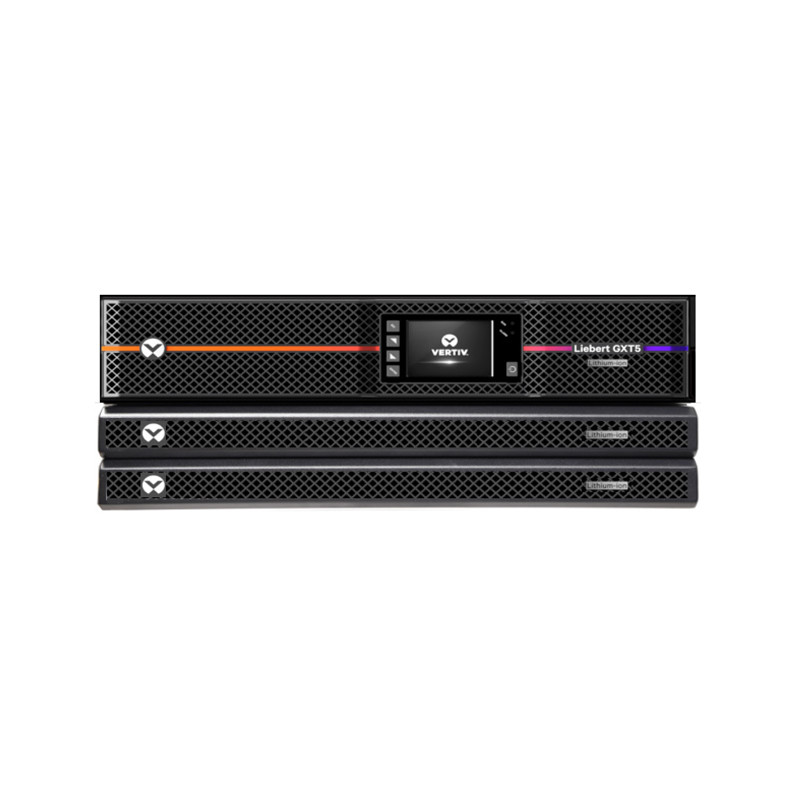

Vertiv GXT5-3000IRT2UXL UPS 3000VA/3000W Online Double Conversion Rack Tower UPS
The Vertiv Liebert GXT5 UPS, with a capacity of 3000VA/3000W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 200/208/220/230/ 240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a three-year factory warranty. The Vertiv Liebert GXT5 offers premium power protection for critical infrastructure in centralized and edge applications.
Application/Usage
Mission Critical Equipment
– Edge Computing
– Network Workstation
– Server
– Network Closet
– Large Network Peripheral
– VoIP
Status Indicators
Colored Graphic LCD Display:
- UPS status
- UPS configuration
The Liebert® GXT5™ UPS is a single phase, online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system. The new Liebert® GXT5™ from Vertiv™ is an advanced version of the widely-regarded GXT UPS Series. GXT5 is ideally suited to protect critical infrastructure in both centralized and edge network applications.
- GXT5-3000IRT2UXL, Vertiv Liebert GXT5 UPS - 3000VA/3000W 230V
- Tower/rack mount design with gravity sensing feature and color graphic display.
- Offers reliable, easy-to-manage power protection and battery backup with 3000VA(3000W) capacity.
- Has UNITY Power Factor (1.0) for more usable power and more connected loads to save space and costs.
- Includes four individual programmable output receptacles for device control and optimum battery usage.
- ENERGY STAR 2.0 certified with higher efficiency, for energy savings and improved reliability.
Available in 750VA/1/1.5/2/3kVA
Top-level on-line double conversion UPS for mission-critical application
Unity output power factor
LCD multi-language color display (gravity sensing)
On-line (VFI) mode efficiency up to 94% at full load
Active ECO mode efficiency up to 98%
Energy Star 2.0 certified
Controllable and programmable output sockets
Integrated solution with batteries and electronics
External battery cabinets auto-detection
Operates at full power up to 40°C (up to 50°C with derating)
Intelligent Communication ready
Safety Agency Approved Category B IEC 61000-4-5 Surges/Lightning protection capability
