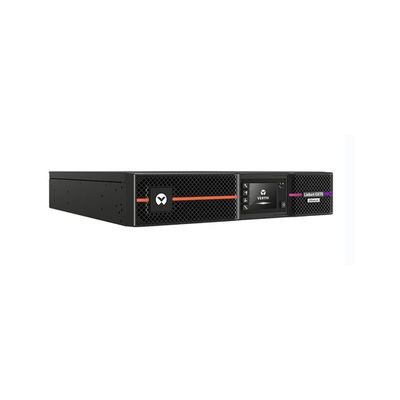

Vertiv Liebert GXT5-750IRT2UXL 750VA 750W Online Rack Tower UPS
| Place of Origin | China |
|---|---|
| Brand Name | Vertiv |
| Certification | CE |
| Model Number | Vertiv GXT5 UPS |
| Packaging Details | cartons |
| Delivery Time | 60days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/months |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Vertiv GXT5 UPS | Power Level | 750VA - 3000VA |
|---|---|---|---|
| Technology | 230 VAC | Product Type | Tower UPS/Rack-mounted UPS |
| Input Voltage | 230 VAC | Rated Frequency | 50 Hz / 60 Hz |
| Frequency Range | 40-70Hz; Auto Sensing | Output Voltage | 200/208/220/230/240 VAC |
| Rated Frequency | 50-60Hz | Waveform | Sine Wave |
| Battery Type | Valve-regulated,non-spillable, Lead Acid | Rated Voltage | 36 Vdc, 48 Vdc, 72 Vdc |
| Charger Current | Nominal 2.2 A; Maximum 8 A | Operating Temperature | Full Power Up To 40 ºC (up To 50 ºC With Derating) |
| Storage Temperature, °C | - 15 To + 40 | Relative Humidity | 0 To 95% Non-condensing |
| Operating Elevation | Up To 3,000 M At 25°C Without Derating | Audible Noise | 46 DB |
| Safety | UL-1788 ,C-UL Listed, IEC 62040-1 2 EN 62040-1 | RFI/EMI | CISPR22 Class A (RFI) / FCC Part 15 (Class A) |
| Transportation | ISTA Procedure 1A | ||
| Highlight | Vertiv Liebert GXT5 750VA,GXT5-750IRT2UXL,Online Rack Tower UPS |
||
You can tick the products you need and communicate with us in the message board.
| Model | Power | |
|---|---|---|
| GXT5-750IRT2UXL | 750 VA / 750 W | |
| GXT5-1000IRT2UXL | 1000 VA / 1000 W | |
| GXT5-1500IRT2UXL | 1500 VA / 1500 W | |
| GXT5-2000IRT2UXL | 2000 VA / 2000 W | |
| GXT5-3000IRT2UXL | 3000 VA / 3000W |
Product Description
Vertiv Liebert GXT5-750IRT2UXL 750VA 750W Online Rack Tower UPS
The Liebert® GXT5™ UPS is a single phase, online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system. The new Liebert® GXT5™ from Vertiv™ is an advanced version of the widely-regarded GXT UPS Series. GXT5 is ideally suited to protect critical infrastructure in both centralized and edge network applications.
Best Suited For:
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Manufacturing
- Retail and Wholesale
- Telecom
- Transportation
Features
Available in 750VA/1/1.5/2/3kVA
Top-level on-line double conversion UPS for mission-critical application
Unity output power factor
LCD multi-language color display (gravity sensing)
On-line (VFI) mode efficiency up to 94% at full load
Active ECO mode efficiency up to 98%
Energy Star 2.0 certified
Controllable and programmable output sockets
Integrated solution with batteries and electronics
External battery cabinets auto-detection
Operates at full power up to 40°C (up to 50°C with derating)
Intelligent Communication ready
Safety Agency Approved Category B IEC 61000-4-5 Surges/Lightning protection capability
STANDARD SPECS
Ratings (VA /W). 750 VA / 750 W
Dimensions and Weight
Dimensions (mm) Unit, W×D×H 400×430×85
Unit Weight (kg) 16.5
Input
Rated Volatge 230 VAC
Rated Frequency 50 Hz / 60 Hz
Frequency Range 40 to 70 Hz
Power Factor ≥0.99
Input Power Cord C14
Output
Nominal Voltage 200/208/220/230/240 VAC
Waveform Sine wave
Inverter Overload Capability >200% minimum 250 ms, 150 to 200% for 2 seconds; 125 to 150% for 50 seconds; 105 to 125% for 60 seconds
Efficiency in Online Mode Up to 93%
Active Eco Mode Up to 98%
Output Receptacles (8) EN60320/C13
Internal Battery
Rated Voltage 36 Vdc
Charger Current Nominal 2.2 A; Maximum 8 A
Type Valve-regulated, non-spillable, lead acid
Qty x V x Rating 3 x 12 V x 9.0 Ah
End Cell Voltage 1.67 V/cell (discharge voltage per cell will be from 1.67 Vdc to 1.90 Vdc, canbe selected by PARAMSET)
Floating Voltage Equalize charge: 2.35 V/cell; Float charge: 2.27 V/cell
Battery Voltage Range 30 Vdc to 42.3 Vdc
General
Operating Temperature, °C Full power up to 40 oC (up to 50 oC with derating)
Storage Temperature, °C -20 to 60 ( contain batteries will be from -15 to 40 °C.)
Storage Temperature, °C -20 to 60 ( contain batteries will be from -15 to 40 °C.)
Relative Humidity 0 to 95% non-condensing
Operating Elevation Up to 3,000 m at 25°C without derating
Audible Noise <46 dBA max @ 3 ft. (1 m) front and sides <43 dBA max @ 3 ft. (1 m) rear
Safety UL-1778 (Fifth Edition), C-UL listed, IEC 62040-1: 2008 (First Edition) + Am 1:2013, EN 62040-1:2008+A1:2013
Transportation ISTA Procedure 1A
Surge Immunity : ANSI C62.41 Category B
Warranty 3 Years
