High Availability Eaton 9SX1000 9SX 1000VA Online UPS 900W 9SX1000I
| Place of Origin | China |
|---|---|
| Brand Name | Eaton |
| Certification | CE |
| Model Number | Eaton 9SX UPS |
| Packaging Details | cartons |
| Delivery Time | 60days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/months |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Eaton 9SX1000 | Power Level | 700 VA - 3 KVA |
|---|---|---|---|
| Form Factor | Tower | Technology | Online UPS |
| Rated Frequency | 40-70Hz, 50/60Hz Autoselection, Frequency Converter Mode | Input Voltage | 220V, 230V, 240V |
| Output Voltage | 220V, 230V, 240V | Efficiency | 98% |
| Switched Outlet Group | 2 Outlet Groups | Battery Management | ABM® And Temperature Compensated Charging Method (user Selectable), Automatic Battery Test, Deep Discharge Protection, Automatic Recognition Of External Battery Units. |
| Communication Ports1 USB Port + 1 Serial RS232 Port + 1 Mini-terminal Block For Remote Power Off + 1 | 1 USB Port + 1 Serial RS232 Port + 1 Mini-terminal Block For Remote Power Off + 1 Mini-terminal Block For Output Relay | Communication Slot | 1 Slot For Network-M2, Network-MS, ModBus-MS Or Relay-MS Cards |
| Operating Temperature | 0 To 40°C | Typical Noise Level | 45dB |
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 | EMC | IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B |
| Approvals & Marking | CE /CB Report (TUV) / CULus / EAC / RCM / BIS | ||
| Highlight | 1000VA Online UPS,Eaton 9SX1000,9SX1000I |
||
You can tick the products you need and communicate with us in the message board.
| Model | Power | |
|---|---|---|
| 9SX700I | 700VA/630W | |
| 9SX1000I | 1000VA/900W | |
| 9SX1500I | 1500VA/1350W | |
| 9SX2000I | 2000VA/1800W | |
| 9SX3000I | 3000VA/2700W |
Product Description

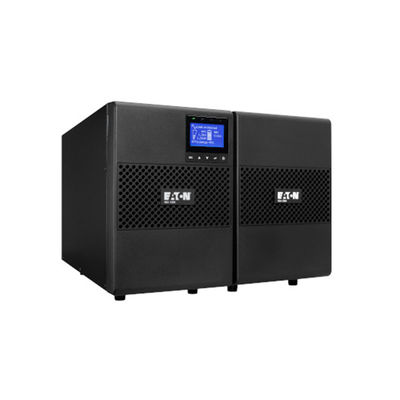

Eaton 9SX1000 9SX 1000VA/900W Online UPS 9SX1000I
The Eaton 9SX UPS offers high availability, flexibility, and advanced protection for infrastructure, industrial, medical, IT, networking, storage, and telecom. Delivering on-line double conversion protection in convenient tower or rack format.
Eaton 9SX – Features
- Online double conversion topology allows for continuous monitoring of power conditions.
- With a 0.9 power factor, the 9SX powers more servers than other UPSs with equivalent VA ratings and lower power factors.
- Energy metering – kWh values can be monitored using the LCD or Eaton’s Intelligent Power Manager
- Load segment control enables prioritized shutdowns of nonessential equipment to maximize battery runtime for critical devices.
- Eaton ABM battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%
- Add up to 4 external hot-swappable battery modules for increased battery runtime.
| General | |
| Topology | On-line double conversion with PFC (Power Factor Correction) system |
| Configuration | Tower |
| Part Number | 9SX1000I |
| Rating (VA/Watts) | 1000/900 |
| Dimensions (H x W x D, mm) | 252 x 160 x 387 |
| Warranty | 2 years warranty |
| Electrical Input | |
| Connection |
(1) IEC-320-C14
|
| Input Voltage Range | 190-276V without derating (up to 120–276V with derating) |
| Nominal Voltage | 200/208/220/230/240V |
| Frequency | 50/60 Hz autoselection |
| Frequency Range | 40-70 Hz |
| Electrical Output | |
| Outlets |
(6) IEC-320-C13
|
| Output Frequency | 50/60 Hz autoselect, frequency converter as standard |
Standard Runtime; Load 900w: 6 Minutes Backup time.
| Battery Management | ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units. |
| Extended Battery Capability | EBM |
| Communications | |
| User Interface | Multilingual graphical LCD display |
| Communication Ports | 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay |
| Communication Slot | 1 slot for Network-M2, Network-MS, ModBus-MS, or Relay-MS cards |
| Environmental & Standards | |
| Audible Noise | <41dB |
| Operating Temperature | 0 to 40°C continuous |
| Safety markings | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| EMC Markings | IEC/EN 62040 -2, FCC Class B, CISPR22 Class B |
| Approvals | CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC |
