Compact Eaton 93PR Modular UPS 200KVA 300kW 600kW 1200kW IP20
| Place of Origin | China |
|---|---|
| Brand Name | Eaton |
| Certification | CE |
| Model Number | Eaton 93PR UPS |
| Packaging Details | cartons |
| Delivery Time | 60days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/months |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Eaton 93PR UPS | Power Level | 200KVA-1200KVA |
|---|---|---|---|
| Rated Voltage | 380/400/415Vac | Product Type | Modular UPS |
| Moduel Power | 60kW | Module Power Quantity | 1~8 |
| Double-conversion Mode | 96.5% | ESS Mode | 99% |
| Parallel Unit | Up To 8 Units, Up To 1.6MW | Frequency | 50/60Hz |
| Input Voltage | 380/400/415Vac | Output Voltage | 380/400/415Vac |
| Overload | 125% Load, 10 Min | Battery Voltage | 480VAC |
| Charging Method | ABM Advanced Battery Management | Connection | 3 Mini-slot Slots |
| Degree Of Protection | IP20 | Safety Standard | IEC62040-1 |
| EMC Standard | IEC62040-2 | Certifications | TLC, CQC, CE |
| Highlight | Eaton Modular UPS 200KVA,Eaton 93PR Modular UPS |
||
You can tick the products you need and communicate with us in the message board.
| Model | Power | |
|---|---|---|
| 93PR 250KVA | 250KVA | |
| 93PR 300KVA | 300KVA | |
| 93PR 400KVA | 400KVA | |
| 93PR 500KVA | 500KVA | |
| 93PR 600KVA | 600KVA | |
| 93PR 900KVA | 900KVA | |
| 93PR 1000KVA | 1000KVA | |
| 93PR 1200KVA | 1200KVA |
Product Description

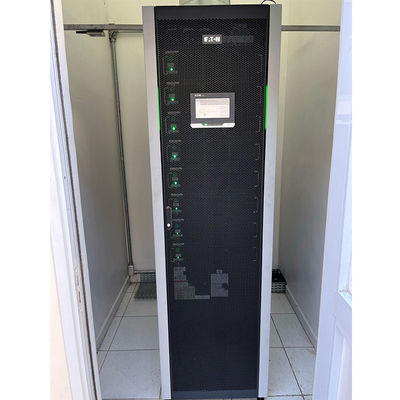

Eaton 93PR Modular UPS 200KVA
The 93PR UPS range is developed with Eaton’s patented advanced power electronics technology. The range satisfies power reliability requirements for small to hyperscale data centres, automation and medical applications, and large infrastructure projects.
Compact, scalable and modular
Available in 300kW, 600kW, 1200kW
Core features
Lithium-Ion Compatible
- Seamless integration with Lithium battery, compatible with multiple Lithium-Ion BMS
Robust components
- Enhanced efficiency and reliability with SIC Hybrid IGBT Module
- High stability long life oil-filled capacitors
Increased scalability
- Supports 8 units with different power modules in parallel for capacity up to 4.8 MW
- Provides an external battery connection capability and use of common batteries between two UPS systems for reduced deployment cost
Outstanding efficiency
- Maximizes system efficiency with Eaton’s patented three-level technology and ESS energy management system
- Provides efficiency up to 97% in double-conversion mode, and 99%+ in ESS mode
- Improves efficiency while reducing energy consumption and cooling requirements with VMMS intelligent module sleep function as an environment-friendly solution
Safety and reliability
- Enhances system reliability with a redundant design for key components such as fans and power supplies
- Minimizes failure rates with overall design, system testing, and comprehensive deployment
Management efficiency
- Provides power and virtual system management with Intelligent Power Management (IPM) software
- Supports automatic storage of application data and safe shutdown of the operating system with Intelligent Power Protection (IPP) software
- Supports many communication accessories and ports
Easy management
- Provides easier access to detailed status information through its 7” user-friendly LCD touchscreen interface
- Integrates with the leading virtual platforms through its full suite of power management and connectivity software
- Increases uptime through its 24x7 remote monitoring and reporting capabilities
Hot swappable and hot scalable
- Power module can be replaced or added while another module continues protecting the load
- Eliminates the need to go to bypass for module replacement or upgrading (MTTR as low as 5 minutes)
